Highlights

  • Verified for performance on Intel® architecture – Intel® Select solutions
    provide benchmark-tested configurations to help businesses realize smooth deployments and optimal performance
  • Optimized power and performance at peak efficiency – Run cooler, save on data center OPEX, and reduce eco-footprint
  • Breakthrough performance and dramatically reduced disk latency – Intel® Optane™ SSDs deliver lightning fast performance with Intel® 3D NAND technology for superior cache tiering and demanding storage workloads
Image module

DataON S2D-5212

Performance and cost-optimized flexible flash and HDD server node

Built with 2nd Generation Intel® Xeon® processors, DataON S2D-5212 server nodes deliver a choice of single or dual-CPU socket performance and flexibility in a 2U form factor. Supporting up to 1.5TB of DDR4 memory per server, high bandwidth 25/50/100GB networking and flexible flash and HDD, these innovative designs provide a superior and reliable server for traditional IT, intelligent edge appliances, data center, and hybrid-cloud software-defined applications.

Designed and validated through rigorous industry testing, all DataON S2D-5212 server nodes are certified for Microsoft Windows Server 2019 and are the basis for validated Intel Select Solutions from DataON. Transforming these Intel-based industry-standard platforms to server nodes, the DataON S2D-5212 eliminates expensive OEM hardware taxes and required service and maintenance contracts, while offering high-performance, reliability and access to emerging technologies at a fraction of the cost.

As the basis for validated Intel Select Solutions, DataON S2D-5212 server nodes simplify evaluation and eliminate guesswork via tightly specified hardware and software components. Intel® Optane™ solid state drives (SSDs) help eliminate data center storage bottlenecks and can accelerate applications, reduce transaction costs for latency-sensitive workloads, and improve overall data center TCO.

DataON S2D-5212 server nodes deliver power and performance at peak efficiency, reduce heat and noise, and minimize eco-footprint. With built-in TPM 2.0 security, enterprise users get an extra layer of security, ensuring data stays safe. Integrated with DataON MUST monitoring and visibility software for Microsoft Azure Stack HCI solutions, DataON S2D-5212 server nodes also provide integrated Baseboard Management Controllers (BMC) with an embedded Web server so system administrators can gain location-independent remote access to server hardware.

Features

  • Available in 2U standard form factor
  • Single or dual-CPU sockets with 2nd Generation Intel® Xeon® Scalable processors with up to 24 cores
  • Up to 24 DIMM slots and 1.5 TB of DDR4 memory per server or up to 6TB Intel® Optane™ DC persistent memory
  • Up to 3.5″ 2x U.2 NVMe and 10x SAS/SATA drives
  • Up to 7 PCIe slots and on-board M.2 boot-drives
  • Integrated data protection with TPM 2.0 trusted attestation for security and business
  • Integrated Baseboard Management Controller (BMC) with embedded Web server
  • 25/50/100GB High-bandwidth networking with RDMA capability
  • Standard three-year DataON warranty
ModelS2D-5212i
Form Factor2U / 1-node rack 12x 3.5”
Drive Bay Config2x NVMe U.2 and 10x SAS/SATA
Processor2nd Generation Intel® Xeon® Scalable
CPU CoresDual socket, 16-48 cores per node
TPM2.0Included
Memory128GB to 1.5TB DDR4 2933MHz per node
DIMM24 slots
Boot DriveDual SATA M.2
PCIe Slot Config7x PCIe 3.0 x8
Onboard Network Ports2x 10GbE RJ45
Networking2x 25GbE SFP28 or 2x 40/50/100GbE QSFP28 dual-port RDMA adapters
Max. TDP165W
Power SupplyDual 1300W@100-240V
Dimensions3.44" H x 16.93" W x 27.95" D

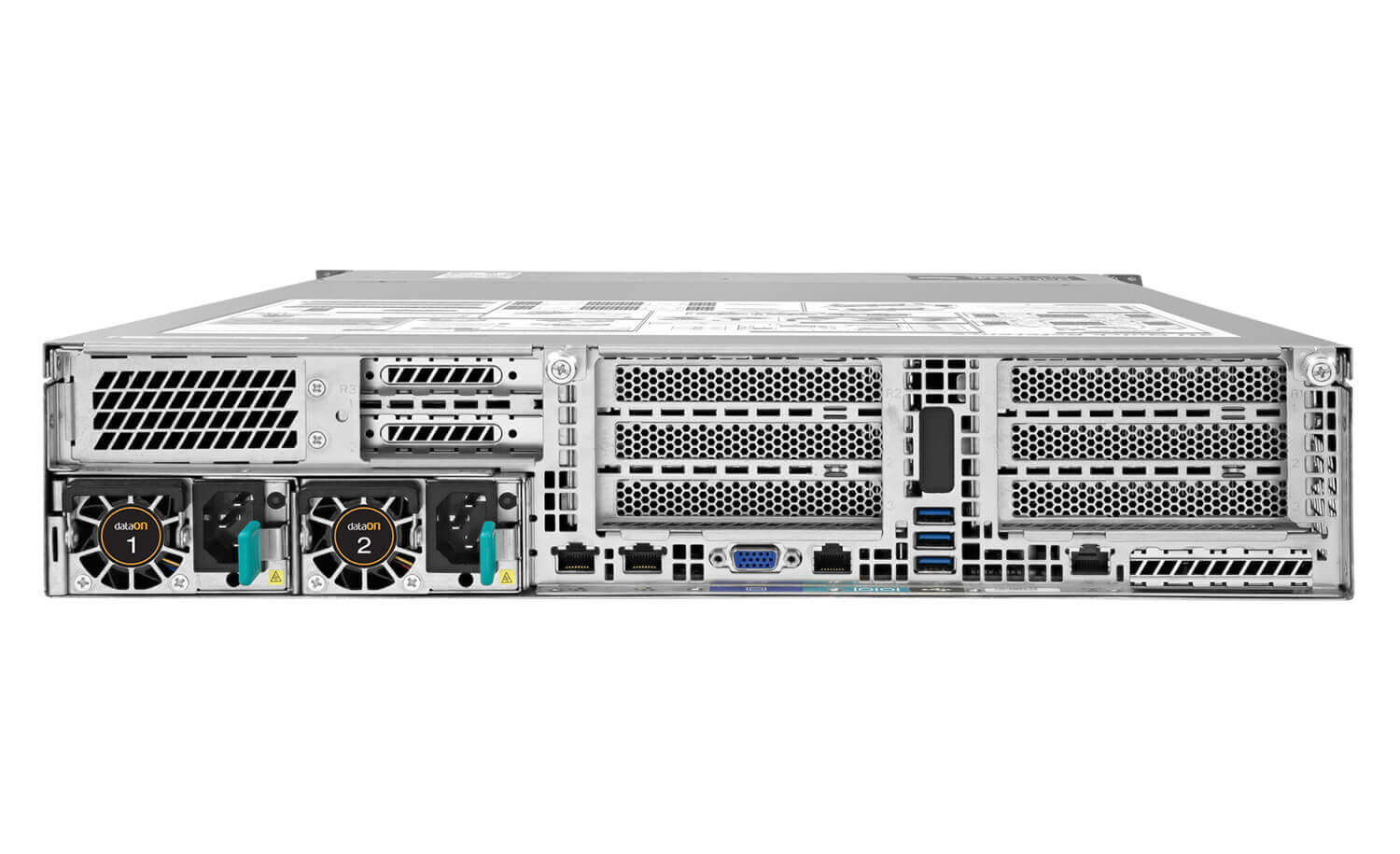

S2D-5212i Front Side View S2D-5212i Front View S2D-5212i Rear View S2D-5212i Rear Side View S2D-5212i Top Overview
