High Capacity
Equipped with over 780TB of raw capacity in a single server for storage intensive applications or enterprise level storage.
High Density
Includes (78) 3.5"/2.5" drive bays in a single 4U storage server.
Enterprise Hardware RAID Ready
Tested and validated with enterprise hardware RAID for maximum throughput and performance.
SMB 3.0 over RDMA
Provides low latency storage and networking, and increased CPU efficiency within a 10/40GbE network.
Built for Microsoft enterprise backup
Ideal for tier 1 and nearline data backups.

DataON DCS-9178 Backup Appliances for Windows Server 2016

The DCS-9178 utilizes dual Intel® Xeon® E5-2600v3 processors with up to 512GB of memory—capable of delivering up to 120TB of storage in single 2U system. It is also equipped with twelve hot-swappable screw-less 3.5” drives in an ultra-dense 2U chassis. Support for both enterprise hardware RAID and SMB 3.0 over RDMA on a 10/40Gbe network provides maximum throughput and performance.

The DCS-9178 fully supports Storage Replica, a new disaster recovery feature in Windows Server 2016. It supports both synchronous and asynchronous data replication across any distance and supports HDDs, SDDs and NVMe technology. It also works at a block level so it works with any type of file system, including ReFS.

The DCS-9178 also supports Veeam® Backup & Replication™, which provides fast, flexible, and reliable recovery of virtualized applications and data in a Hyper-V environment. Veeam Backup delivers fast, reliable backup and restoration of files, entire VMs and application items, without the use of agents.

  • Object storage and distributed file storage ready
  • Active backup and archive enabled configurations
  • Up to 780TB in a single storage enclosure
  • Screw-less HDD tray for efficient deployment
ModelDCS-9178
Form Factor4U Rackmount Single Server node, dual socket & cluster ready
Storage Drive(70) Top-load 3.5"/2.5" drive bays plus (8) Rear-load 3.5" drive bays ; Total 78-bay
Storage I/O12Gb/s SAS 3.0
Power & Cooling4 x 1023W (2+2)110V-220V High-efficiency redundant PSU, Platinum
(4 + 1) 6" dual-rotor Fans, supports one rotor fan failed redundancy
Processor(2)Intel® Xeon® E5-2600 V4 family
Memory16 x DDR4 DIMM Slots, Max. 512GB(16 x 32GB DIMM)
Boot Drives2 x 7mm 128GB SATA III SSD mirrored, hot-plug
Expansion Slot2 x PCI-e Gen.3 x8 (Low Profile), 1 x PCI-e Gen.3 x16
Storage Controllers1 x Broadcom | LSI 9300-8i 8-port internal 12GB SAS HBA
Network(2) Intel® 82599 GbE RJ-45
(2) Intel® GbE RJ-45
Management Port(1) GbE RJ-45 IPMI Management port
System ManagementIPMI v2.0 compliant, SNMP support
TPMTPM 2.0

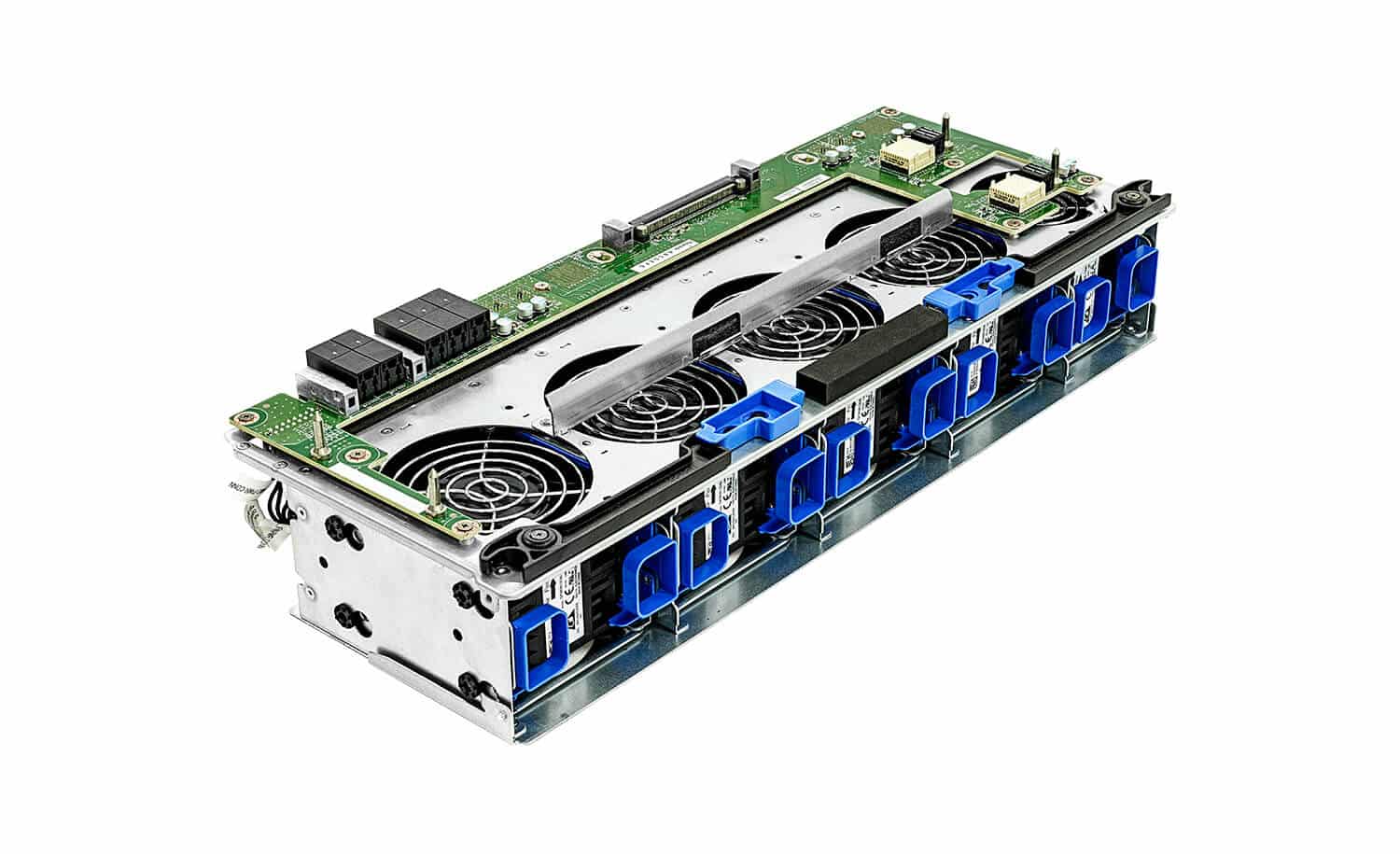

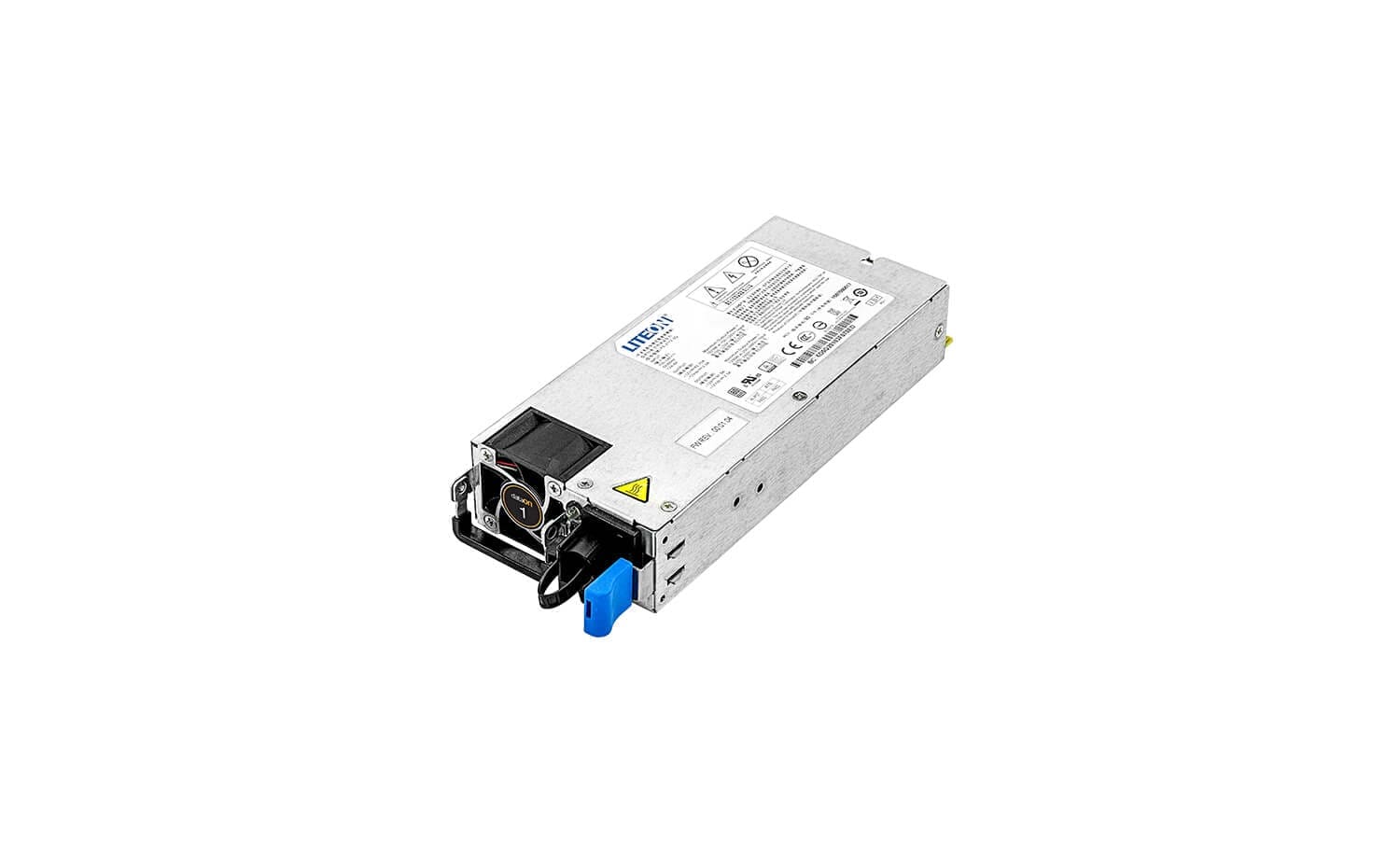

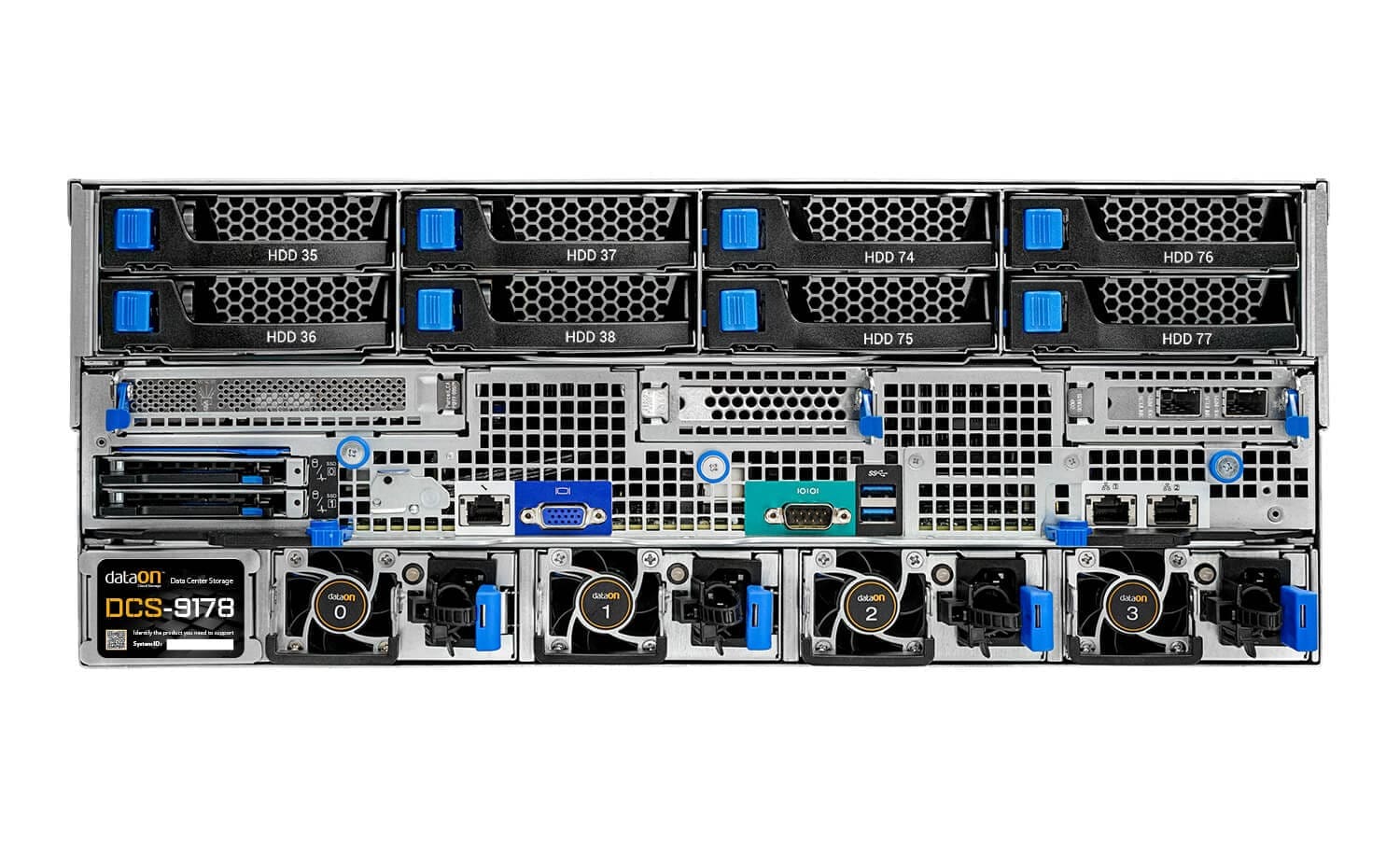

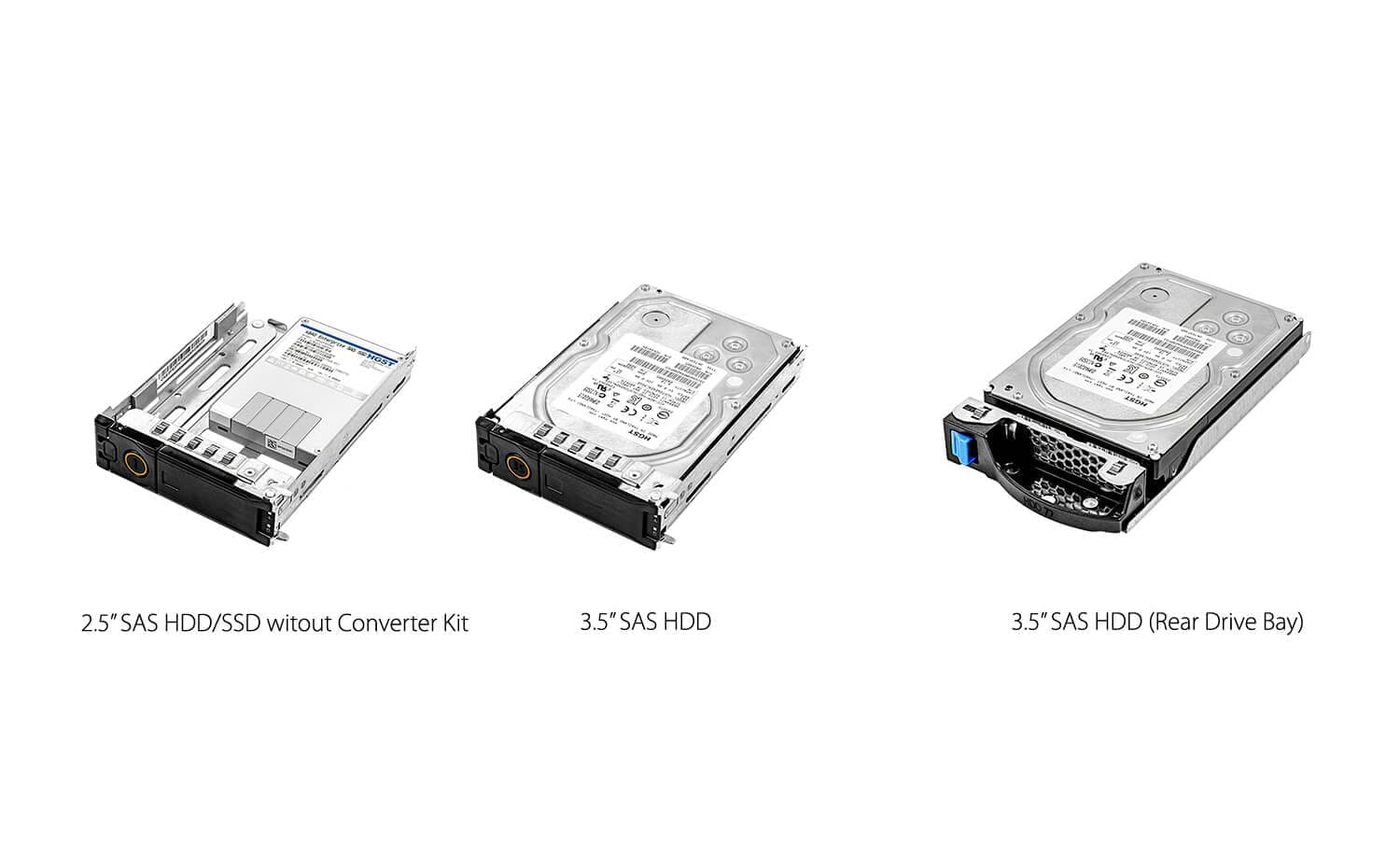

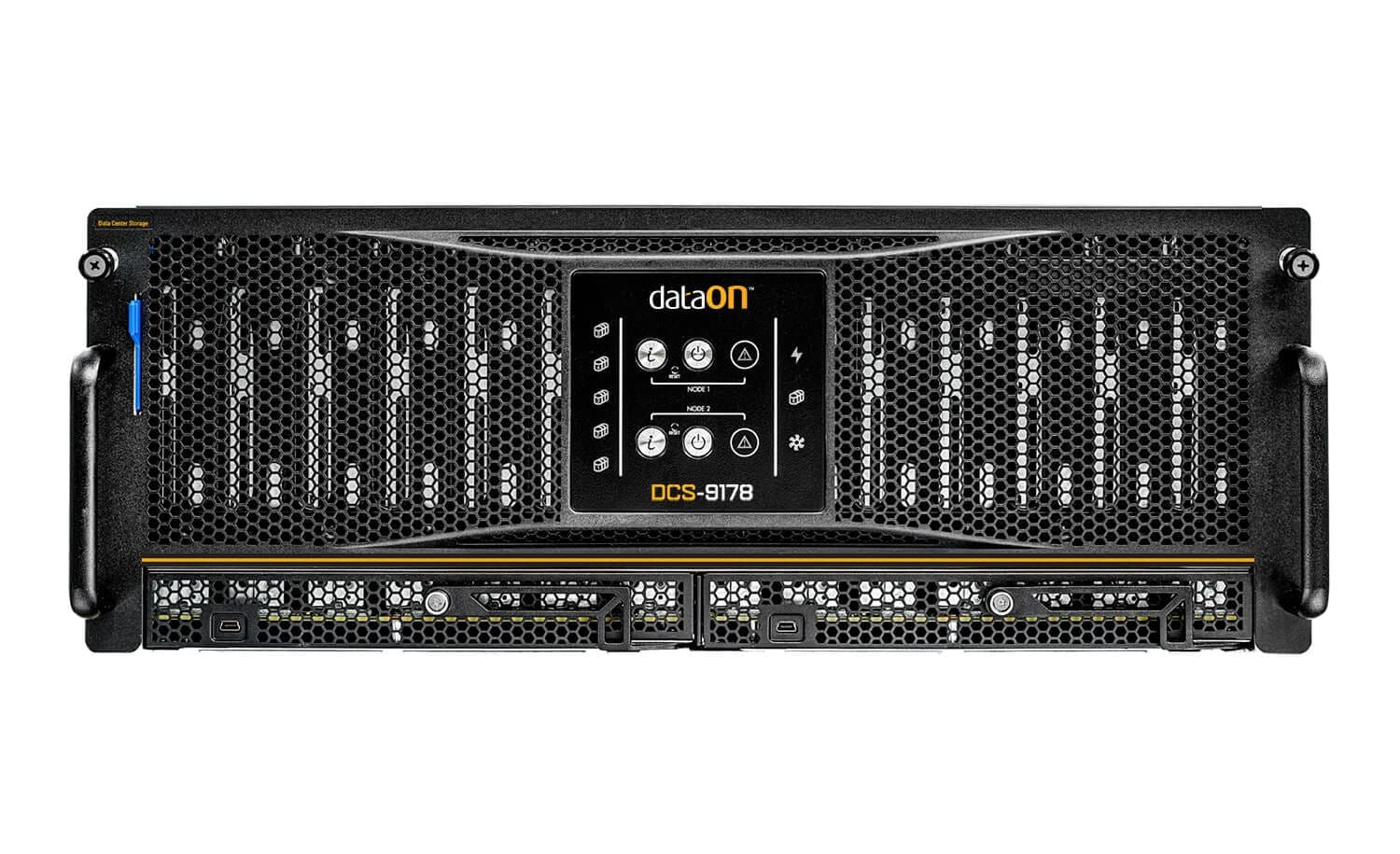

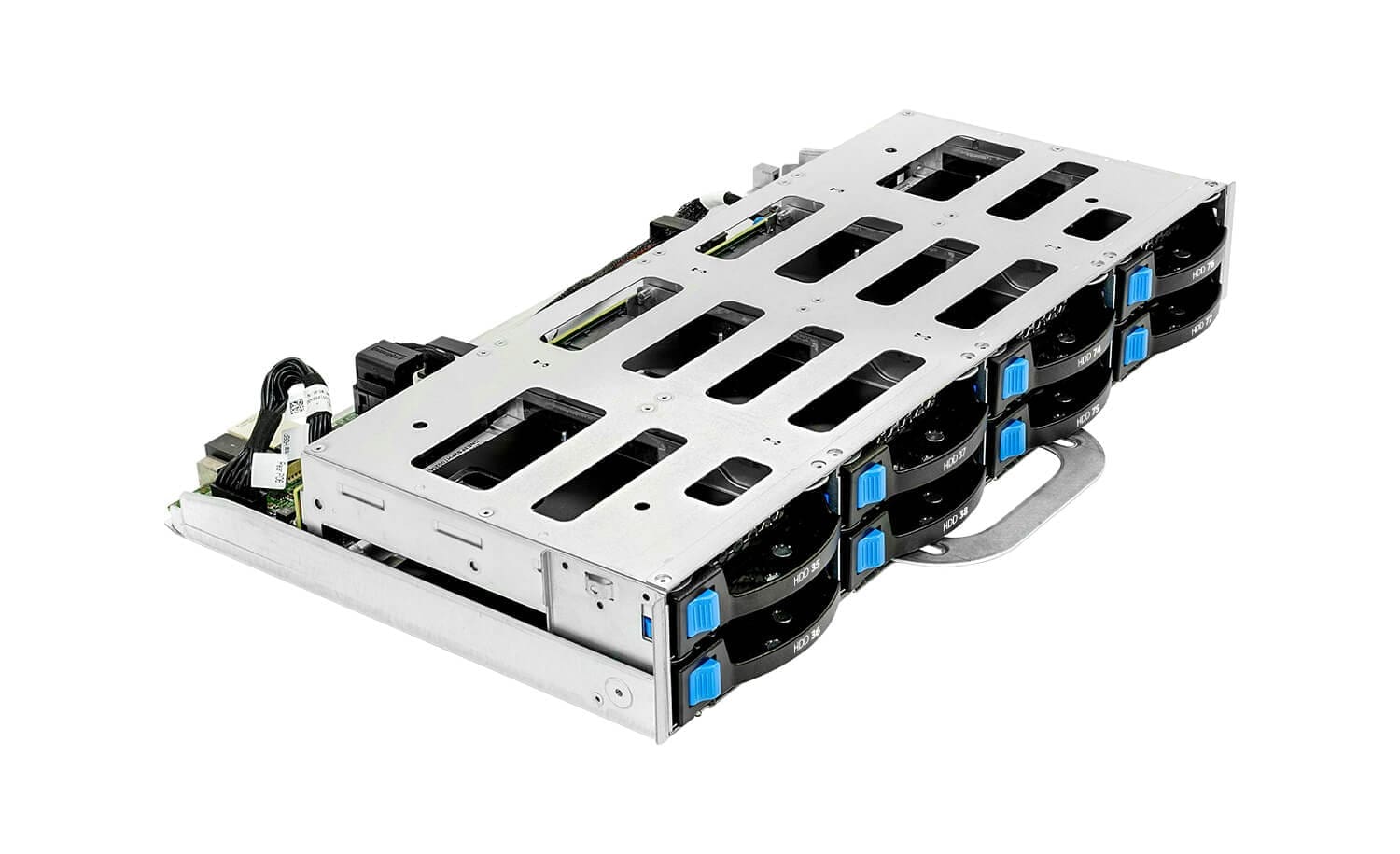

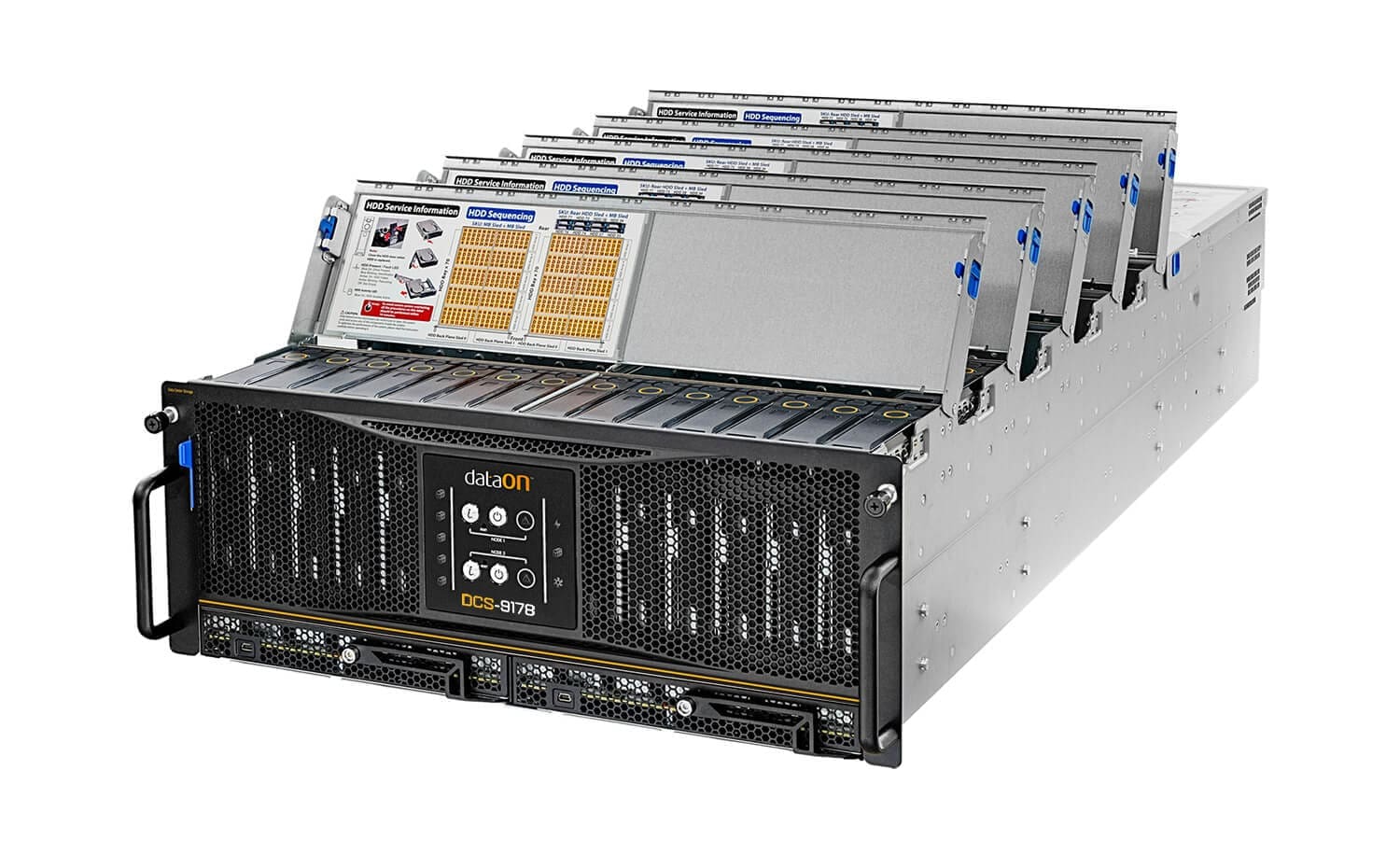

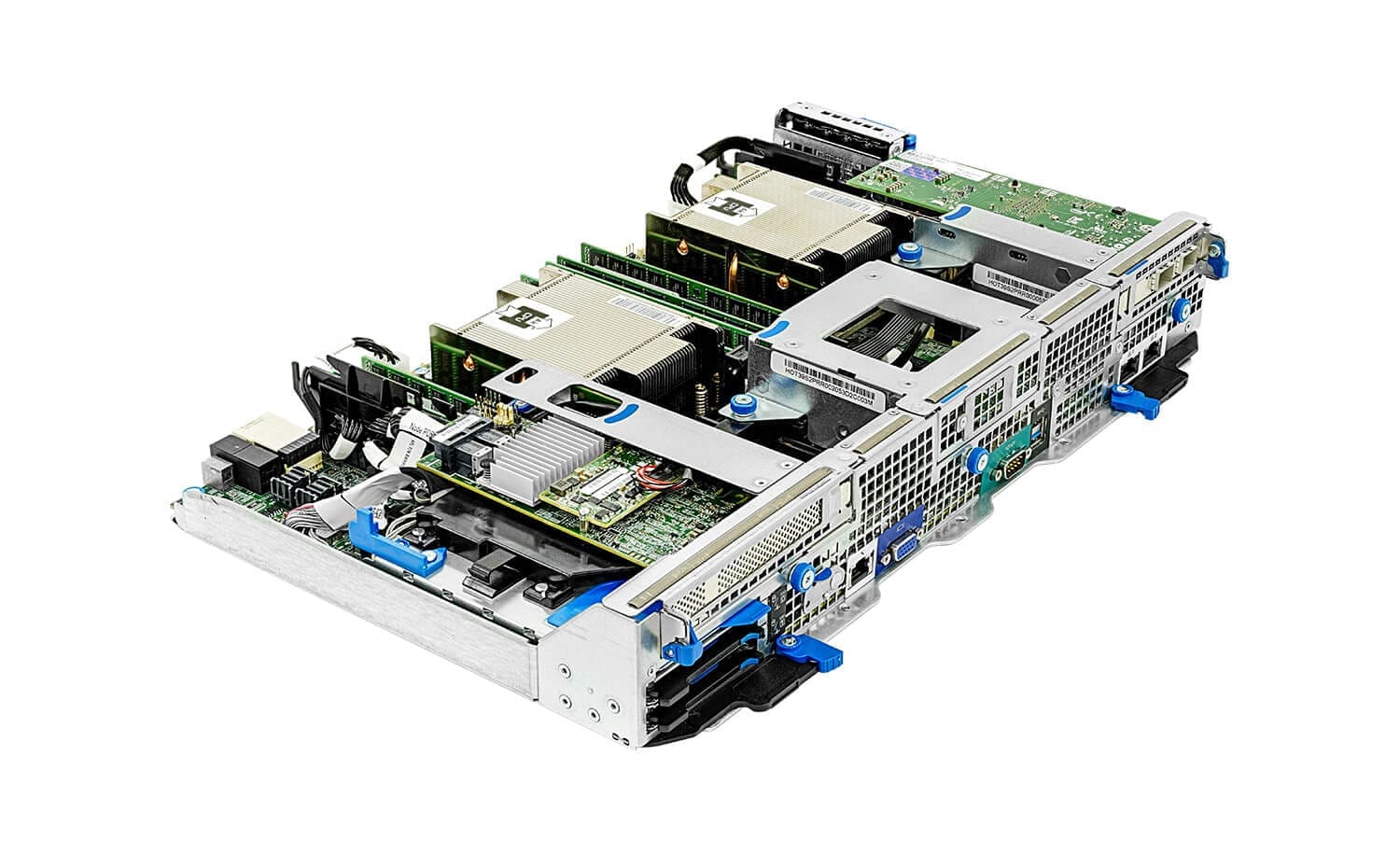

DCS-9178 Front Side View with Top Cover opened DCS-9178 Front View DCS-9178 Rear View DCS-9178 Cluster Server Node DCS-9178 Rear Drive Bay Module DCS-9178 4+1 Cooling Fan Module DCS-9178 1023W 2+2 PSU DCS-9178 Drive Tray with SAS Disk
