DataON CiB-9124 delivers Enterprise-class Features and Optimizes your Microsoft Enterprise Applications with Windows Server 2016

The CiB-9124 appliance consists of a 2U 24-bay chassis with two server nodes protected by a 10Gb heartbeat connection for real-time high availability to extend system up-time and protect business continuity. It can deliver close to 700TB of raw storage with the best cost-per-GB value.

The CiB-9124 re-invents clustered shared storage with the introduction of end-to-end 12Gb/s SAS device performance. It delivers tiered storage functionality by optimizing for both performance (SSDs, hot tiering) and capacity (HDDs, cold tiering) of local shared storage. This purpose-built platform thrives in tiered SSD and HDD storage deployments with cluster-aware file systems.

This appliance also runs on the Cluster Shared Volumes Resilient File System (ReFS) to maximize data availability, deliver high resiliency, and improve data integrity across scale-out file servers (SoFS) and software storage bus to storage and networking hardware.

[dfd_spacer screen_wide_spacer_size=”35″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
  • Flash Performance – All-flash configuration is capable of providing over 1 million IOPS, using the latest all 12Gb SAS SSD technology to scale I/O intensive workloads like SQL and VDI.
  • Storage and Networking with SMB 3.0 over RDMA – Increases CPU efficiency while delivering the highest throughput and lowest latency on a 10/40 GbE network.
  • Automated out-of-the-box deployment –Accelerates time to deployment for Windows Server 2016, Storage Spaces Direct, and Storage Replica environments.
  • Storage Replica (SR) Ready – Tested and validated with SR for seamless deployment in synchronous stretch cluster and asynchronous cluster-to-cluster environments.
  • DataON MUST™ Tool – Leverages the Windows Storage Health API (SM-API) to provide a new level of advanced monitoring, visibility, analytics for Windows SDS.

Tech Specs

[dfd_spacer screen_wide_spacer_size=”45″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
ModelCiB-9124
Form Factor2U rackmount chassis
Front Bay24 x 2.5" HDD/SSD drive
Rear Bay2 x server cluster node bay and 2 x power module
Cooling Fan4 x redundant fan
Power Supply2 x 1023W (1+1) high efficiency redundant PSU
W x D x H17.48" x 31.3" x 3.44"
Weight68lbs - enclosure only
ProcessorIntel® Xeon® E5-2600 V4 (Broadwell-EP)
ChipsetIntel® C610
Memory Slot16 x DDR3 RDIMM, up to 512GB
Expansion Slot2 x PCI-e Gen.3 x8 (Low Profile)
SAS Card (Pre-installed)Broadcom | LSI® 12Gb/s SAS HBA 9300-8i
Network2 x Intel® i350 Dual 1GbE ports On-board per node
Management1 x dedicated 10/100 RJ45 management port per node
IPMI v2.0 compliant, on board "KVM over IP" support
OS Drive2 x 2.5" internal 6Gb/s SATA SSD mirrored per node
External Port1 x SFF 8644 mini-SAS port per node
Heartbeat & Live MigrationIntel® 82599 Dual 10GbE port
Operational EnvironmentOperating temperature: 50º F to 95º F
Non-operating temperature: -40º F to 158º F
Operating relative Humidity: 50% to 90% RH
Non-operating relative Humidity: 20% to 95% RH

Gallery

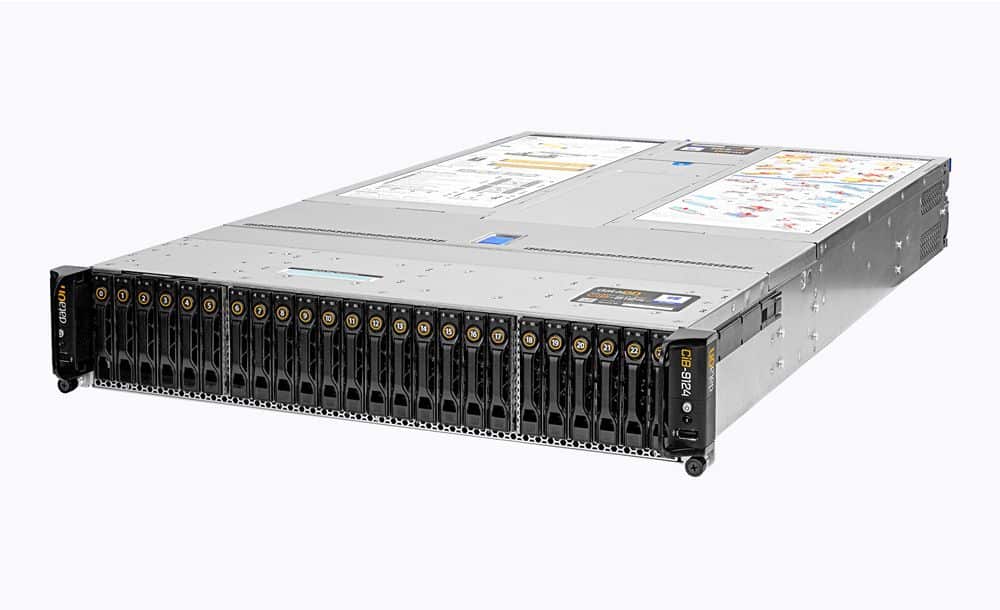

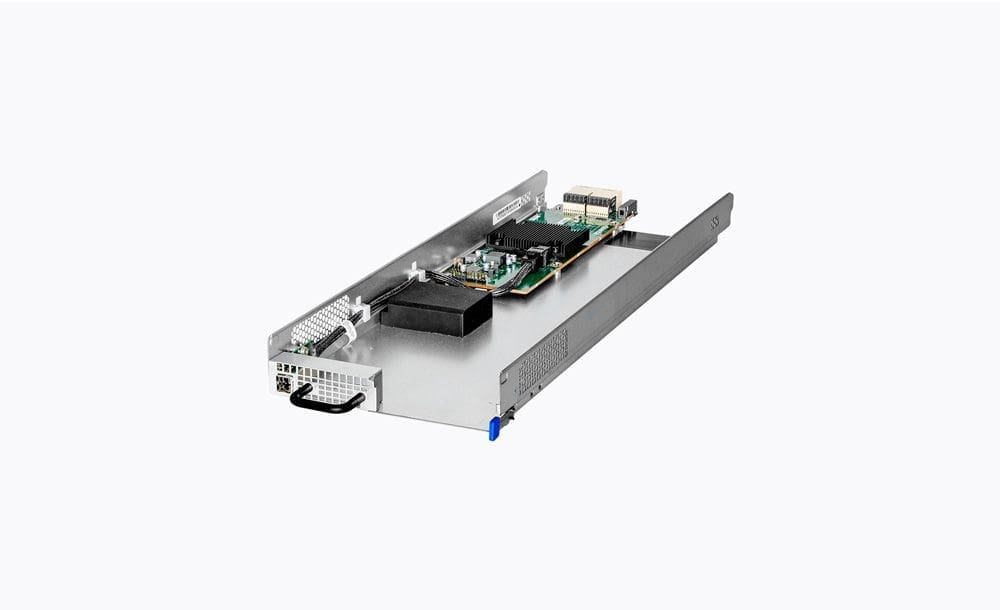

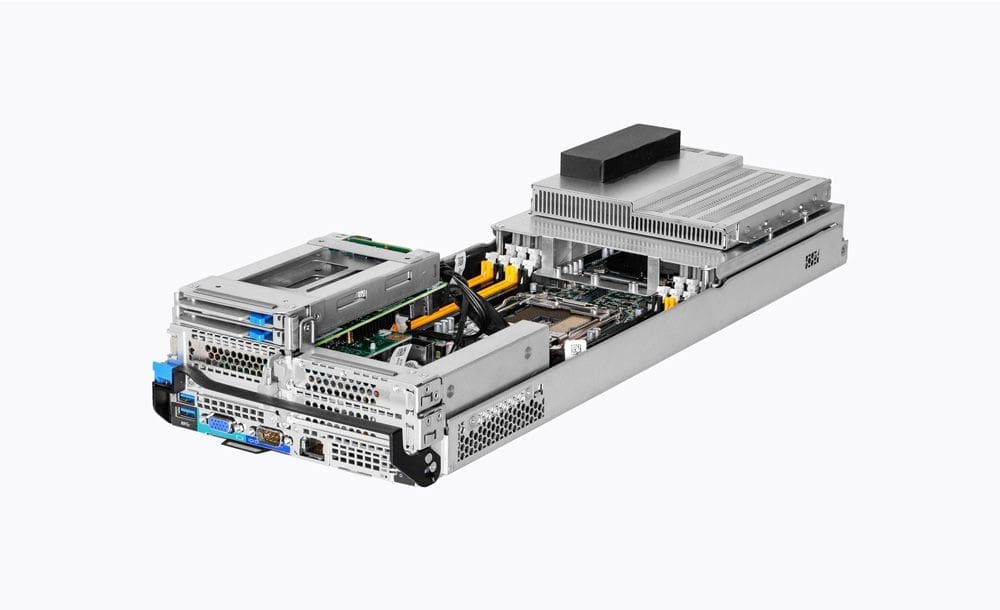

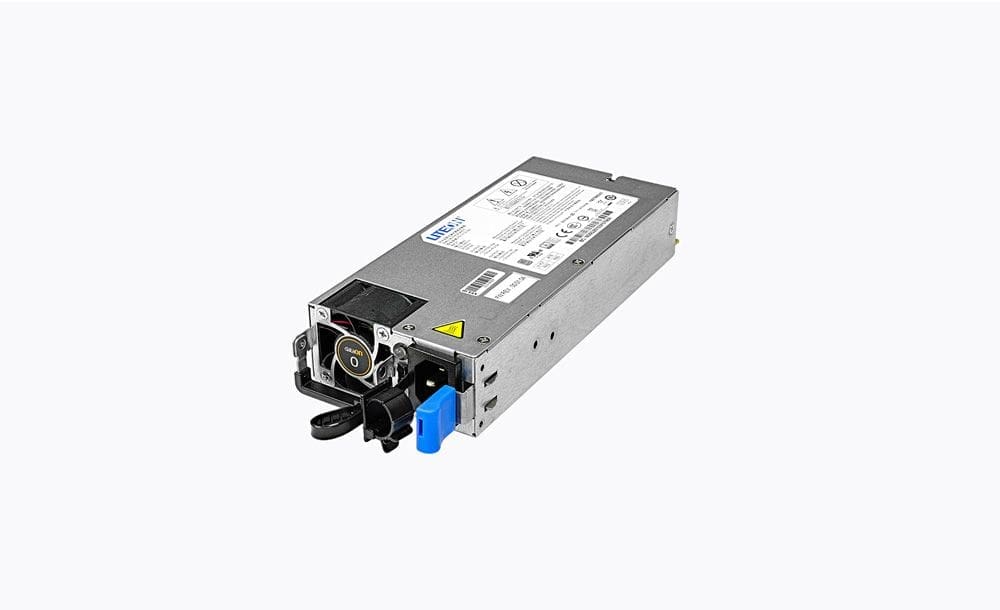

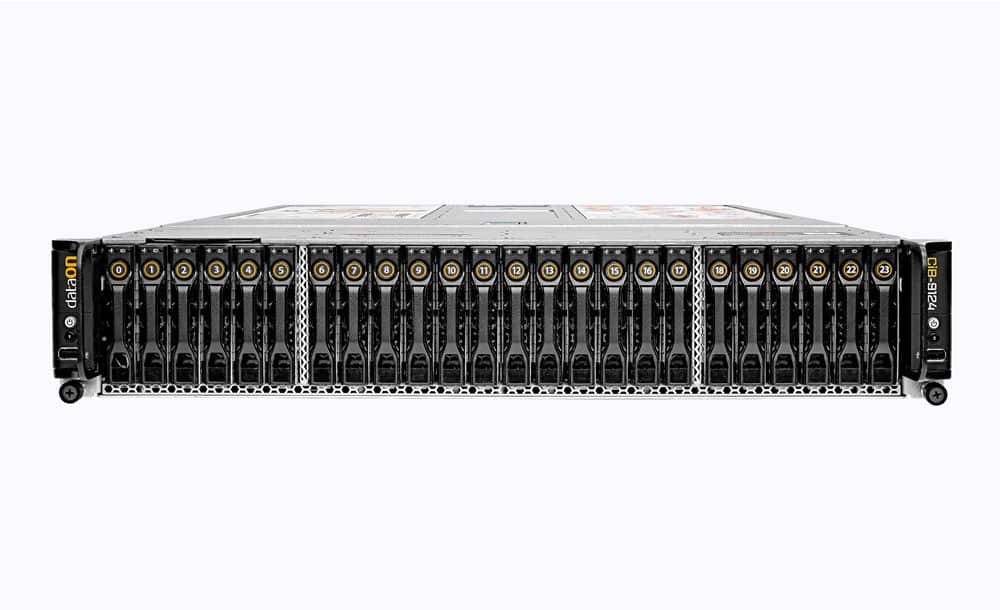

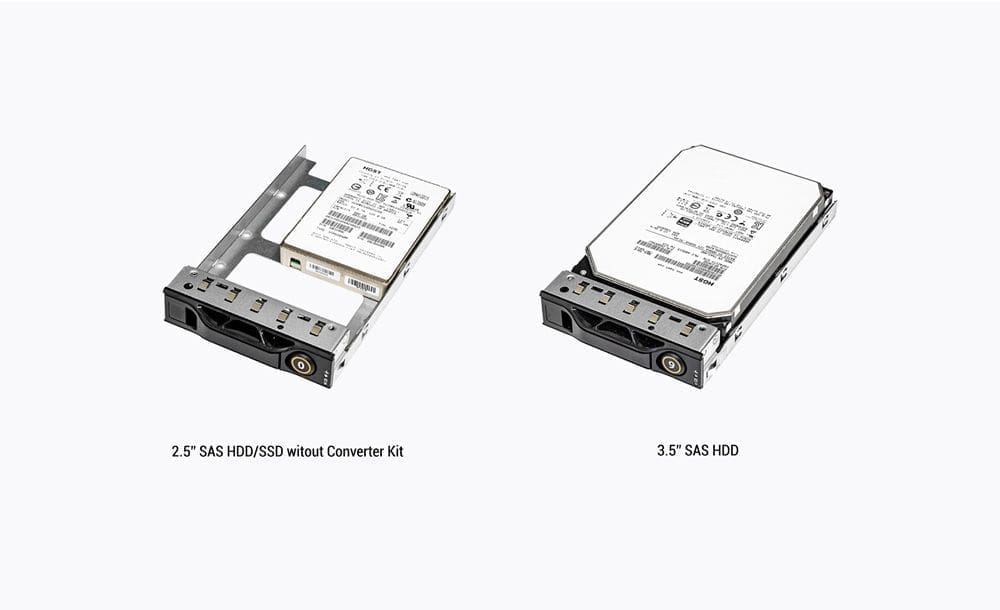

CiB-9124 Front View CiB-9124 Front Side View CiB-9124 Rear View CiB-9124 Server Node CiB-9124 Server Node (Fully Loaded) CiB-9124 12G SAS I/O Module CiB-9124 1023W Power Supply CiB-9124 Drive Tray
[dfd_spacer screen_wide_spacer_size=”35″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″ screen_normal_spacer_size=”25″ screen_tablet_spacer_size=”12″ screen_mobile_spacer_size=”15″]

Documentation

[dfd_spacer screen_wide_spacer_size=”65″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
[dfd_info_box title=”” subtitle=”CiB-9124 Datasheet” main_content=”” read_more=”box” icon_type=”custom” main_style=”style-1″ main_layout=”layout-1″ link=”url:http%3A%2F%2Fdoc.dataonstorage.com%2Fproduct%2FCiB%2F9124%2FDataON_CiB_9124_2U_24-bay_12G_SAS_Cluster-in-a-Box_datasheet.pdf|title:DataON%20CiB-9124%20Datasheet|target:%20_blank|” icon_image_id=”1889″ subtitle_font_options=”tag:div”]
[dfd_info_box title=”” subtitle=”Storage Replica Solution Brief ” main_content=”” read_more=”box” icon_type=”custom” main_style=”style-1″ main_layout=”layout-1″ link=”url:http%3A%2F%2Fdoc.dataonstorage.com%2Fproduct%2FCiB%2F9124%2FSolution_Brief_Windows_Server_2016_Storage_Replica_model_CiB-9124.pdf|title:DataON%20CiB-9124%20Datasheet|target:%20_blank|” icon_image_id=”1890″ subtitle_font_options=”tag:div”]
[dfd_info_box title=”” subtitle=”CiB-9124 Key Parts” main_content=”” read_more=”box” icon_type=”custom” main_style=”style-1″ main_layout=”layout-1″ link=”url:http%3A%2F%2Fdoc.dataonstorage.com%2Fproduct%2FCiB%2F9124%2FDataON_CiB-9124V12_Key_Parts.pdf|title:DataON%20CiB-9124%20Datasheet|target:%20_blank|” icon_image_id=”1892″ subtitle_font_options=”tag:div”]
[dfd_info_box title=”” subtitle=”CiB-9124 Block Diagram” main_content=”” read_more=”box” icon_type=”custom” main_style=”style-1″ main_layout=”layout-1″ link=”url:http%3A%2F%2Fdoc.dataonstorage.com%2Fproduct%2FCiB%2F9124%2FDataON_CiB-9124V12_Block_Diagram.pdf|title:DataON%20CiB-9124%20Datasheet|target:%20_blank|” icon_image_id=”1893″ subtitle_font_options=”tag:div”]

HCL

[dfd_spacer screen_wide_spacer_size=”65″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″][dfd_heading style=”style_05″ subtitle=”” delimiter_settings=”delimiter_style:solid|delimiter_width:120|delimiter_height:2″ title_font_options=”tag:h2″ subtitle_font_options=”tag:div”]SSD / HDD List[/dfd_heading][dfd_spacer screen_wide_spacer_size=”45″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
ManufactureP/NModelInterfaceCapacityRPM/TypeSize
HGST0B31068HUSMM1616ASS20012Gb/s SAS1.6 TBMLC2.5"
HGST0B31067HUSMM1680ASS20012Gb/s SAS800 GbMLC2.5"
HGST0B31066HUSMM1640ASS20012Gb/s SAS400 GBMLC2.5"
HGST0B31065HUSMM1620ASS20012Gb/s SAS200 GBMLC2.5"
HGST0B28983HUC156060CS420x12Gb/s SAS600 GB15K2.5"
HGST0B28984HUC156045CS420x12Gb/s SAS450 GB15K2.5"
HGST0B28985HUC156030CS420x12Gb/s SAS300 GB15K2.5"
HGST0B29921HUC101818CS420x12Gb/s SAS1.8 TB10K2.5"
HGST0B27977HUC101812CS420x12Gb/s SAS1.2 TB10K2.5"
HGST0B27975HUC101890CS420x12Gb/s SAS900 GB10K2.5"
