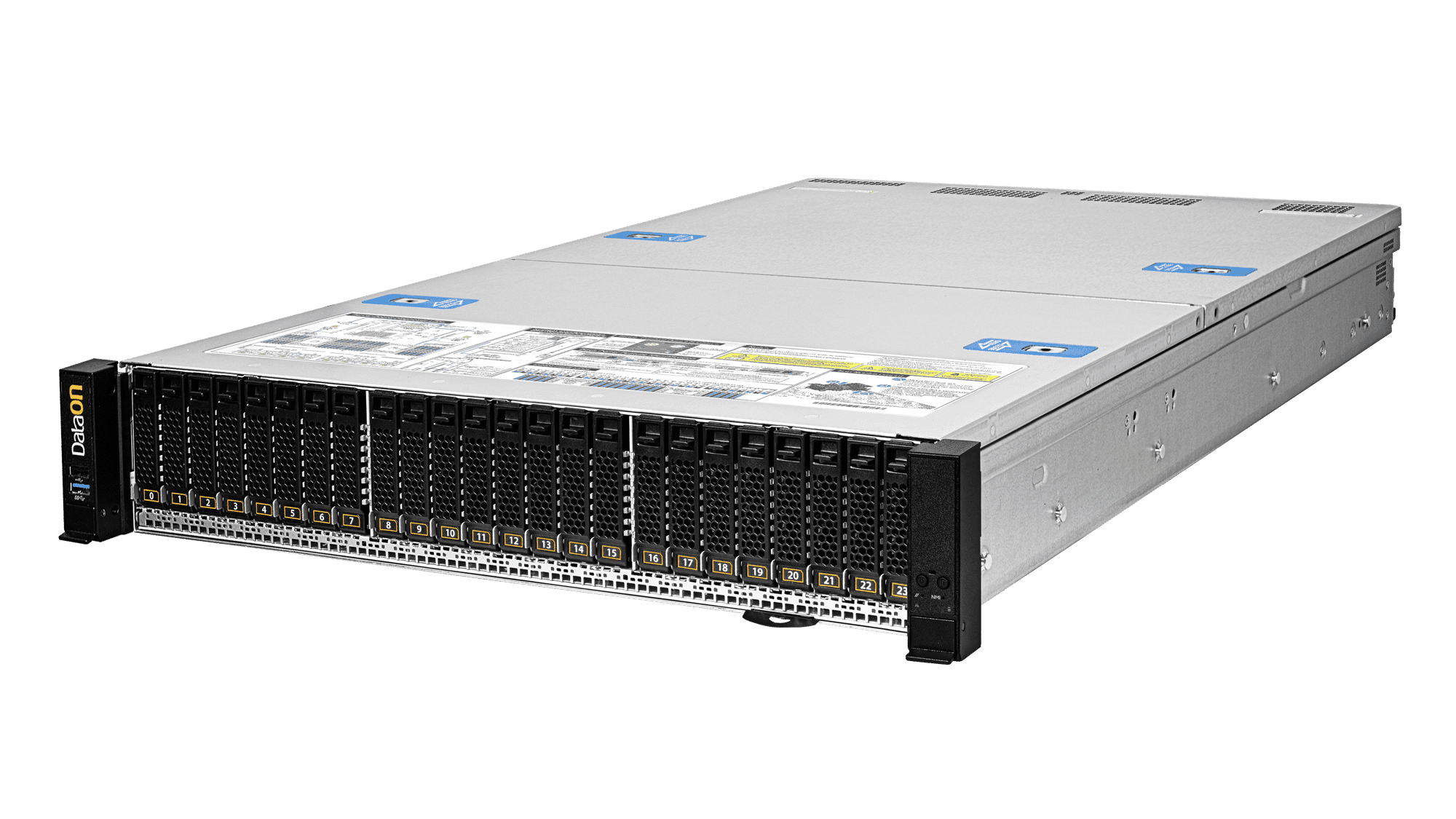

DataON HCI-6224 Validated Node for Azure Stack HCI

Get up and running quickly and reliably with a DataON HCI-6224 validated node for Azure Stack HCI. Optimized for IOPS & performance with all-NVMe flash storage and powered by 3rd Gen Intel® Xeon® Scalable processors, they combine Intel® technologies and Azure Stack HCI to provide a powerful platform for data center modernization.
DataON validated nodes can also help organizations start or extend their hybrid cloud journey with Azure services, consolidate virtualized workloads, and implement Azure Kubernetes Service (AKS) on-premises to run containerized applications.
Solution TypeValidated Node
ProfileAll-NVMe Flash
Form Factor2U / 1-Node Rack
Scale2 to 16 Nodes
CPU3rd Gen Intel® Xeon® Scalable processors
Cores8-80 Cores
Memory512GB – 12TB
Raw Storage11TB – 184TB
Drive Bay Config24x 2.5” NVMe U.2
PCIe Slot Config2x PCIe 4.0 x8 (electrical/mechanical); 2x PCIe 4.0 x8 (electrical and 16x mechanical); 2x PCIe 4.0 x16 (electrical/mechanical)
Onboard Networking2x 10GbE RJ45 OCP mezzanine or 2x 10GbE SFP+ mezzanine
Networking Fabric2x 25GbE SFP28 or 2x 40/50/100GbE QSFP28/56 2-port RDMA
GPU SupportNo
PMEM SupportNo
Secured-core ServerYes
Kernel Soft RebootNO
Vectorized AESYes
VM Memory EncryptionNo
Lifecycle PhaseCurrent

Graphic-Springboard-Title

DataON MUST for Windows Admin Center

DataON MUST (Management Utility Software Tool) combines with Microsoft Windows Admin Center to provide a high level of infrastructure visibility, monitoring, and management for Azure Stack HCI and Windows Server environments.
MUST enhances the Windows Admin Center experience with expanded functionality:
  • Historic data reporting
  • Enhanced disk mapping
  • Alert services
  • Call home service
  • Infrastructure inventory management
Get the Datasheet ⟶
Watch the MUST Demo
Image module
StorageReview gives Microsoft and DataON its Editor’s Choice Award
Azure Stack HCI is recognized for simplicity, manageability, and exceptional performance.
DataON Integrated System for Azure Stack HCI podcast with StorageReview’s Brian Beeler
Image module
Run workloads from your branch office to the edge
Meet the evolving IT demands of branch offices, retail stores, and field locations at an affordable cost.
Image module
Support large-scale virtual desktop implementations
Use remote desktop services, highly available virtual machines (VMs), and integrated scalable storage to support your large-scale virtual implementations.
Image module
Optimize the performance of virtualizing SQL Server
Deploy and manage demanding SQL Server workloads running on hyper-converged infrastructure to get best of class performance.
Image module
Improve security with trusted enterprise virtualization
Use virtualization-based security and certified hardware to help secure your sensitive workloads. Help protect against threats with secure firmware, hardware, and host OS with Secured-core server built in.
Image module
Deploy a tightly integrated Kubernetes–enabled platform
Enable automated deployment and management of containerized apps by running Kubernetes clusters on your hyperconverged infrastructure.
Image module
Run workloads on a highly secure infrastructure
Secured-core servers provide added security for critical applications and data used on the hosts and VMs that run on them.
