Easy to Deploy
Simple out-of-the-box installation
Highly Available
Features dual-node clusters, dual controllers, dual path, heartbeat and redundant power
Highly Flexible
Supports all-flash storage (SSDs), tiered storage (SSDs + HDDs), and capacity storage (HDDs)
Easy to Scale
Expand storage capacity through external storage enclosures (JBODs)
Easy to Manage
DataON’s exclusive MUST software is pre-installed for infrastructure visibility and management

DataON CiB-9473 delivers Enterprise-class Features and Optimizes your Microsoft Enterprise Applications with Windows Server 2016

The CiB-9473 appliance consists of a 4U 70-bay chassis with two server nodes protected by a 10Gb heartbeat connection for real-time high availability to extend system up-time and protect business continuity. It can deliver close to 700TB of raw storage with the best cost-per-GB value.

The CiB-9473 re-invents clustered shared storage with the introduction of end-to-end 12Gb/s SAS device performance. It delivers tiered storage functionality by optimizing for both performance (SSDs, hot tiering) and capacity (HDDs, cold tiering) of local shared storage. This purpose-built platform thrives in tiered SSD and HDD storage deployments with cluster-aware file systems.

This appliance also runs on the Cluster Shared Volumes Resilient File System (ReFS) to maximize data availability, deliver high resiliency, and improve data integrity across scale-out file servers (SoFS) and software storage bus to storage and networking hardware.

  • Flash Performance – All-flash configuration is capable of providing over 1 million IOPS, using the latest all 12Gb SAS SSD technology to scale I/O intensive workloads like SQL and VDI.
  • Storage and Networking with SMB 3.0 over RDMA – Increases CPU efficiency while delivering the highest throughput and lowest latency on a 10/40 GbE network.
  • Automated out-of-the-box deployment –Accelerates time to deployment for Windows Server 2016, Storage Spaces Direct, and Storage Replica environments.
  • Storage Replica (SR) Ready – Tested and validated with SR for seamless deployment in synchronous stretch cluster and asynchronous cluster-to-cluster environments.
  • DataON MUST™ Tool – Leverages the Windows Storage Health API (SM-API) to provide a new level of advanced monitoring, visibility, analytics for Windows SDS.
ModelCiB-9473
Form Factor4U rackmount chassis
Front Bay70 x 3.5" for 3.5"/2.5" HDD/SSD drive
Rear Bay2 x Server Cluster Node bay, 4 x Power Module
Expander4 x Avago SAS 3 x48 12Gb/s 48 port expander (dual path, dual domain)
BackplaneSeven 10-port 12Gb/s SAS/SATA I/O plane with Avago SAS 3 x 28R 12Gb/s 28 port expander
Cooling Fan12 x redundant fan
Power Supply4 x 1000W (2+2) high efficiency redundant PSU
W x D x H19" x 39" x 7"
Weight105lbs - enclosure only
ProcessorIntel® Xeon® E5-2600 V4 family
ChipsetIntel® C610
Memory Slot16 x DDR3 RDIMM, up to 512GB
Expansion Slot2 x PCI-e Gen.3 x16
2 x PCI-e Gen.3 x8
TPMBuilt-in TPM
Network2 x Intel® 82599 10GbE SFP+ ports On-board per node
2 x Intel® i350 1GbE RJ45 ports On-board per node
Management1 x dedicated 10/100 RJ45 management port per node
OS Drive2 x 2.5" internal SATA mirrored per node

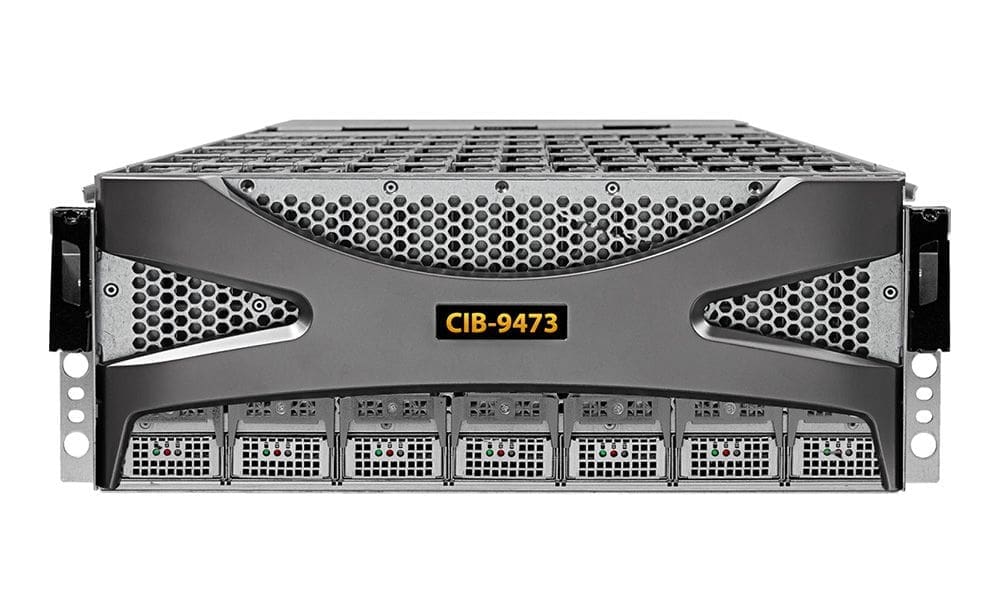

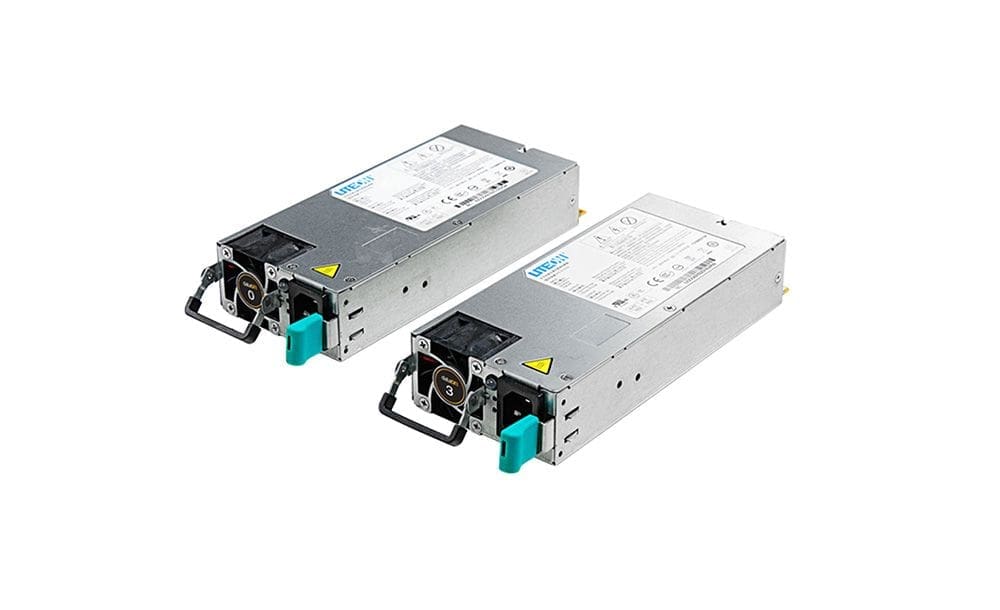

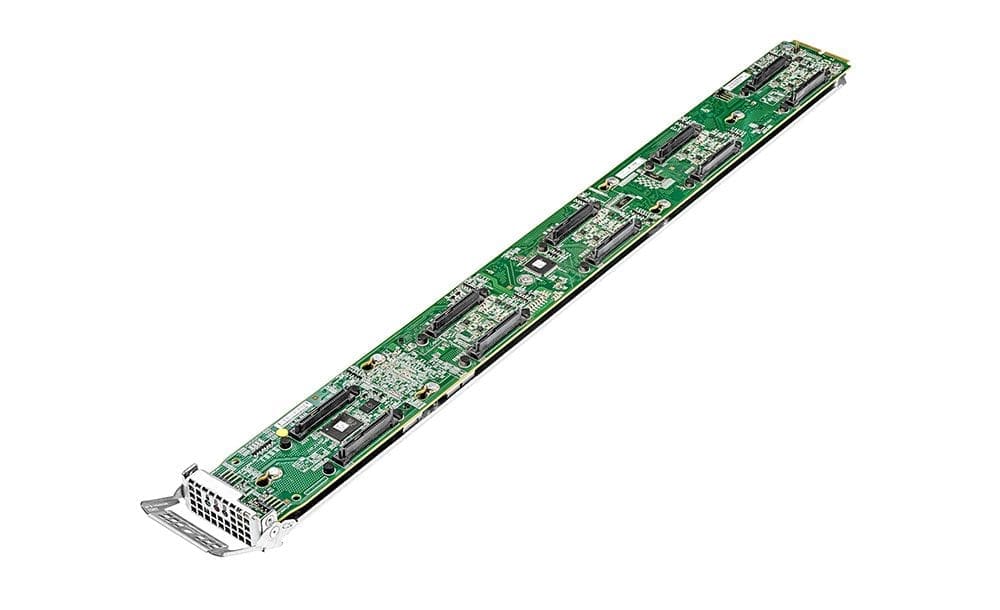

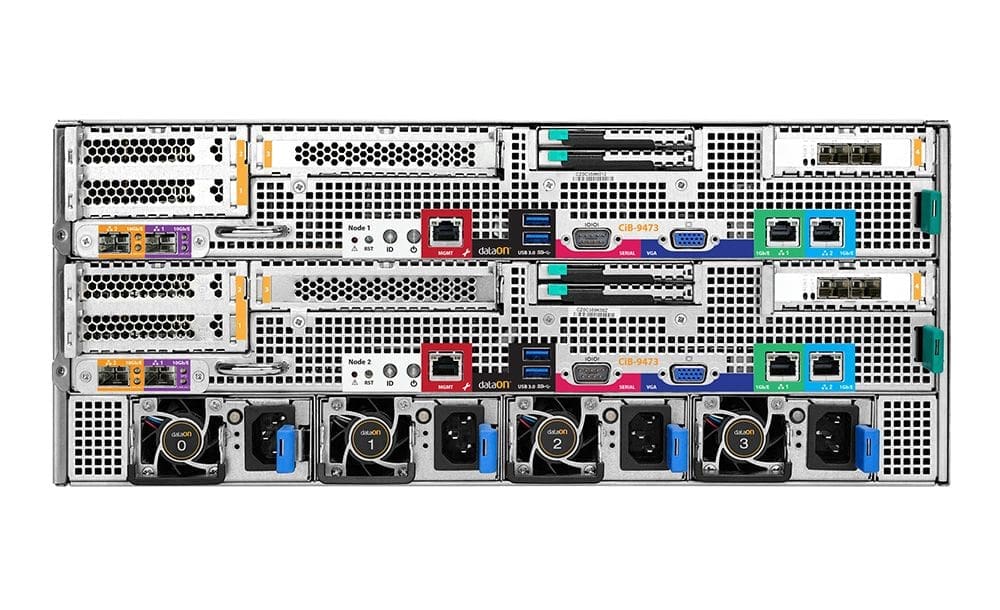

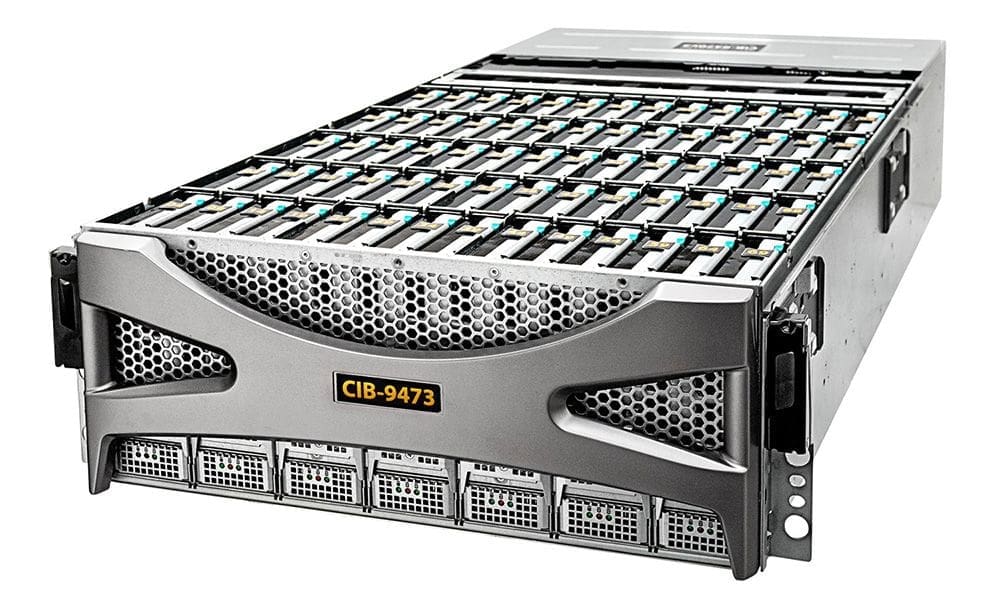

CiB-9473 Front Side View CiB-9473 Front View CiB-9473 Rear View CiB-9473 Top View CiB-9473 Server Node (Fully Loaded) CiB-9473 HDD Midplane CiB-9473 1000W Power Supply
CiB-9473 Datasheet
CiB-9473 Dual HBA Configuration
CiB-9473 Syncro RAID Configuration

SSD / HDD List

ManufactureP/NModelInterfaceCapacityRPM/TypeSize
HGST0B31068HUSMM1616ASS20012Gb/s SAS1.6 TBMLC2.5"
HGST0B31067HUSMM1680ASS20012Gb/s SAS800 GbMLC2.5"
HGST0B31066HUSMM1640ASS20012Gb/s SAS400 GBMLC2.5"
HGST0B31065HUSMM1620ASS20012Gb/s SAS200 GBMLC2.5"
HGST0F23651HUH728080AL420012Gb/s SAS8.0 TB72003.5"
HGST0F23650HUH728060AL420012Gb/s SAS6.0 TB72003.5"
HGST0F22790HUS726060AL421012Gb/s SAS6.0 TB72003.5"
HGST0F22794HUS726040AL421012Gb/s SAS4.0 TB72003.5"
