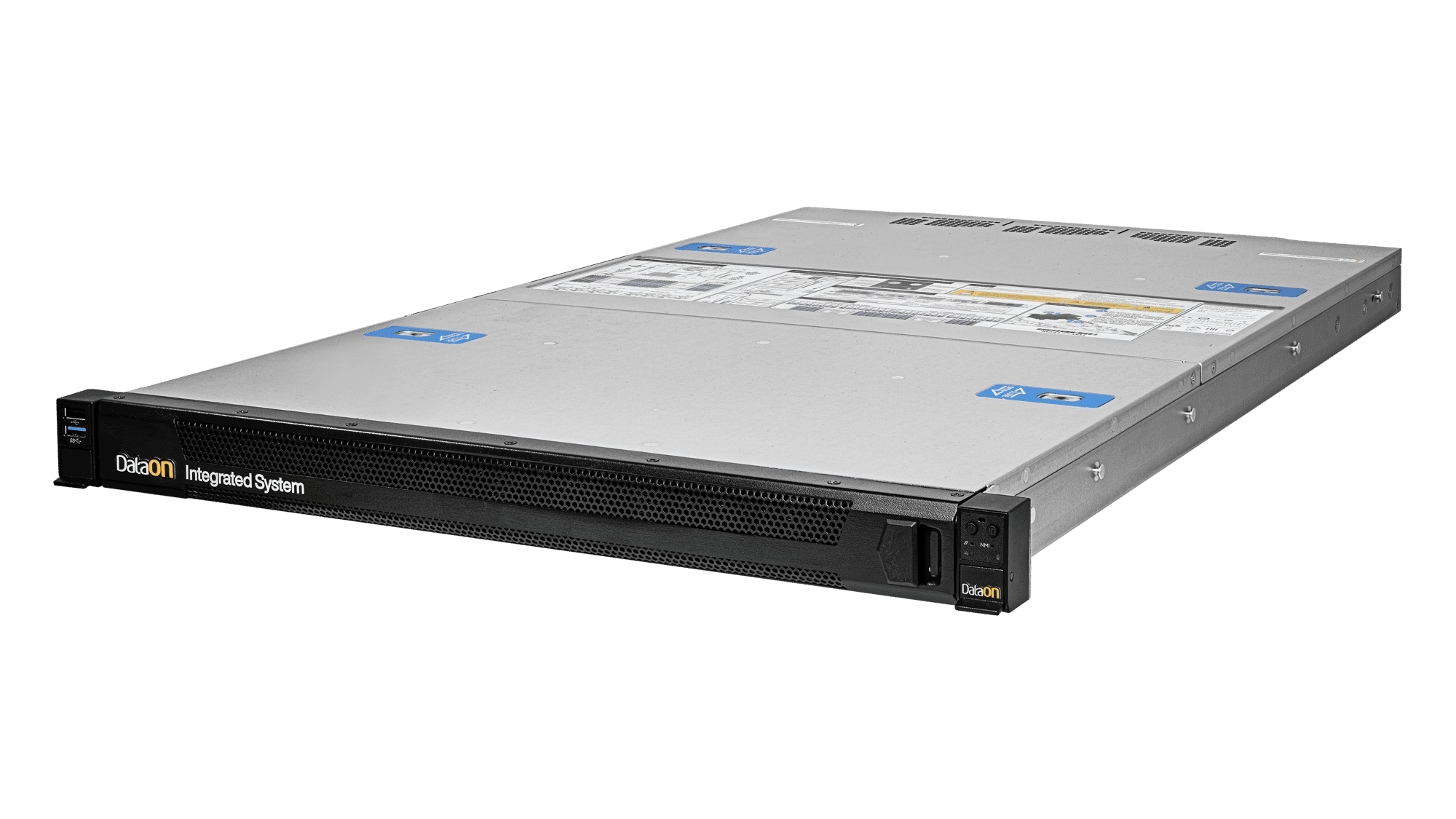

Get a fully integrated appliance-like experience with a DataON AZS-6112 Integrated System for Azure Stack HCI. Optimized for size & performance with all-NVMe flash storage, it delivers the fastest time-to-value through the convenience of pre-installed software, integrated drivers, and firmware updates. Simple to deploy and procure, it’s ideal for customers who require turnkey solutions with little deployment effort from IT staff. It also includes joint support agreements and ticket exchange with both DataON and Microsoft.
DataON Integrated Systems are powered by 3rd Gen Intel® Xeon® Scalable processors, combining Intel® technology with Azure Stack HCI to provide a powerful platform for data center modernization. Together they enable organizations to modernize their infrastructure, start or extend their hybrid cloud journey, and consolidate virtualized workloads.
Solution Type | Integrated System |
Profile | All-NVMe Flash |
Form Factor | 1U / 1-Node Rack |
Scale | 2 to 16 Nodes |
CPU | 3rd Generation Intel® Xeon® Scalable processors |
Core | 8 - 80 Cores |
Memory | 512GB – 12TB |
Raw Storage | 4TB – 153TB |
Drive Bay Config | 12x 2.5” NVMe U.2 |
PCIe Slot Config | 2x PCIe 4.0 x16; 1x PCIe 4.0 x8 |
Onboard Networking | 2x 10GbE RJ45 OCP mezzanine or 2x 10GbE SFP+ mezzanine |
Networking Fabric | 2x 25GbE SFP28 or 2x 40/50/100GbE QSFP28/56 2-port RDMA |
GPU Support | Yes |
PMEM Support | No |
Secured-core Server | Yes |
Kernel Soft Reboot | No |
Vectorized AES | Yes |
VM Memory Encryption | No |
Lifecycle Phase | Current |
DataON MUST Pro is an extension exclusive to DataON Integrated Systems for Azure Stack HCI. It integrates with Microsoft’s cluster aware update (CAU) functionality to simplify deployment and updates to Azure Stack HCI, with minimal disruption to your hybrid cloud infrastructure.
MUST Pro automatically compares your server nodes against the latest quarterly validated server component image baseline from Microsoft. It ensures that servers have the same OS version, drivers, firmware, BIOS, and BMC, and checks the drivers and firmware for network cards, host bus adapters, and SSD and HDD drives. With a single click, your entire cluster can be updated. CAU helps keep your system updated and secure against the latest server exploits

StorageReview gives Microsoft and DataON its Editor’s Choice Award
Azure Stack HCI is recognized for simplicity, manageability, and exceptional performance.
DataON Integrated System for Azure Stack HCI podcast with StorageReview’s Brian Beeler

Run workloads from your branch office to the edge
Meet the evolving IT demands of branch offices, retail stores, and field locations at an affordable cost.

Support large-scale virtual desktop implementations
Use remote desktop services, highly available virtual machines (VMs), and integrated scalable storage to support your large-scale virtual implementations.

Optimize the performance of virtualizing SQL Server
Deploy and manage demanding SQL Server workloads running on hyper-converged infrastructure to get best of class performance.

Improve security with trusted enterprise virtualization
Use virtualization-based security and certified hardware to help secure your sensitive workloads. Help protect against threats with secure firmware, hardware, and host OS with Secured-core server built in.

Deploy a tightly integrated Kubernetes–enabled platform
Enable automated deployment and management of containerized apps by running Kubernetes clusters on your hyperconverged infrastructure.

Run workloads on a highly secure infrastructure
Secured-core servers provide added security for critical applications and data used on the hosts and VMs that run on them.
