Easy to Deploy
Simple out-of-the-box installation
Highly Available
Features dual-node clusters, dual controllers, dual path, heartbeat and redundant power
Highly Flexible
Supports all-flash storage (SSDs), tiered storage (SSDs + HDDs), and capacity storage (HDDs)
Easy to Scale
Expand storage capacity through external storage enclosures (JBODs)
Easy to Manage
DataON MUST software is pre-installed for infrastructure visibility and management

DataON DNS-2673 Storage Enclosures for Windows Server 2016

As part of a Windows-based storage solution, the DNS-2673 helps to reduce complexity and cost from deploying a traditional SAN backup. Using a virtualized environment provides greater flexibility and scalability as your backup storage needs grow.

Tailored to withstand storage capacity demands in a hyper-scale data center, the DNS-2673 provides exceptionally high storage density while delivering outstanding low dollar-per-GB costs for cold, warm and even hot storage workloads. It also leverages high-efficiency power to maximize performance-per-watt savings to reduce TCO.

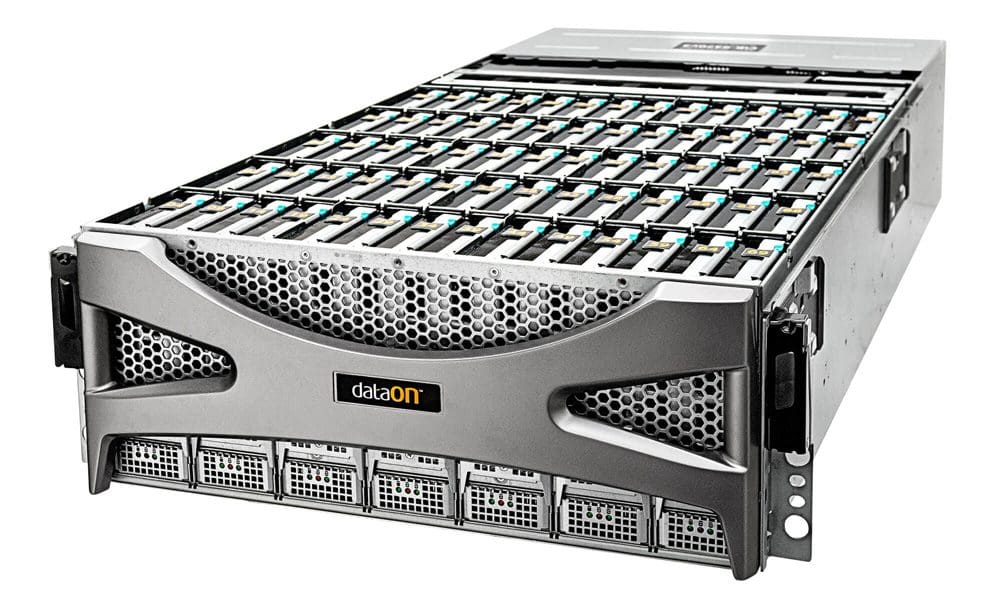

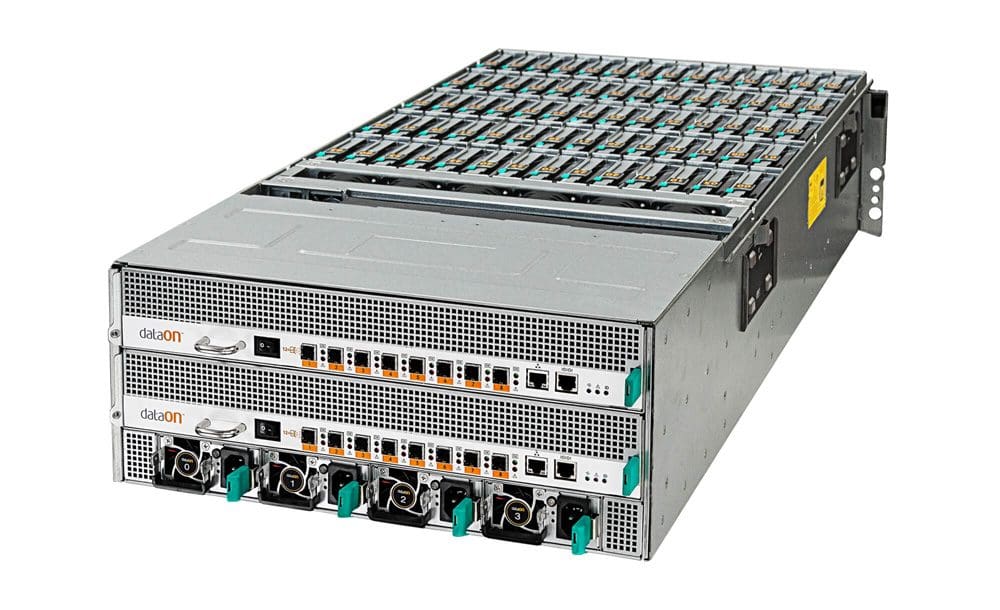

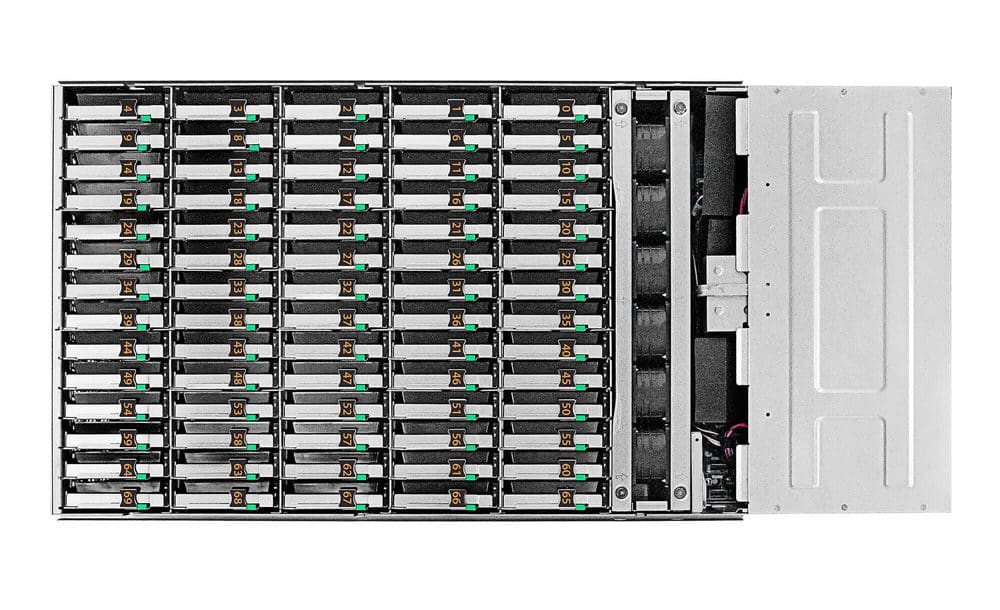

The DNS-2673 supports 2.5” 12Gb/s and 6Gb/s SAS HDDs or SSDs in a 70-bay, 4U chassis. It is also equipped with redundant hot swap drive bays and power and cooling modules. It has single and dual I/O controllers for redundant and maximum availability, supporting up to 4800 MB/sec bandwidth per I/O controller.

The DNS-2673 is designed and optimized for Microsoft storage tiering for performance and capacity. It is certified by Microsoft to seamlessly deploy with Microsoft Server 2016.

  • Windows-based storage solution – Reduces complexity and cost from deploying a traditional SAN backup.
  • Supports a “start small, grow big” strategy –Connects to HBAs for scalable storage
  • Cost-effective alternative – Managed by a RAID controller or a HBA in the primary server, it delivers outstanding low dollar-per-GB costs for cold, warm and even hot storage workloads.
  • Energy efficient – Leverages high-efficiency power to maximize performance-per-watt savings to reduce TCO.
ModelDNS-2670
Form Factor4U 70-bay 3.5"
Drive Support12Gb/s & 6Gb/s SAS 3.0 HDD and SSD
Drive Form Factor3.5" Disk Device (2.5" optional)
I/O ControllerDual Redundant 12Gb/s SAS 3.0 Controller Module
Host InterfaceEight 12Gb/s SAS 3.0 SFF-8644 connections per I/O
SAS ExpanderBroadcom|LSI 12Gb/s SASx48 48-port expander
Controller Support12Gb/s SAS HBA
Server Host SupportSupports up to Eight Server/Host with eight host interface
Disk Drive70 x 12Gb/s or 6Gb/s dual-ported SAS SSD & HDD
Enclosure CoolingTwelve Cooling Fan Module built-in Power Module
Power Supply1023W Lite-On® 2+2 Redundant Power Supply
Drive Zoning1 x 24, 2 x 12 and 3 x 8 Split-bus Zoning via Firmware
LED Indicators*Identify Enclosure     *Power On & Activity     *Drive Fault
*Identify Drive     *Drive Rebuild
Enclosure Dimensions7” H x 19” W x 37.5” D
WeightEnclosure only: 110lbs     with 70 drives: 275lbs
Failure NotificationSCSI Enclosure Services (SES-3) over in-band & LEDs
