K2N/K3N-212 Switchless Validated Nodes for Azure Stack HCI Optimized for Performance & Expansion Hybird
Graphic-Springboard-Title

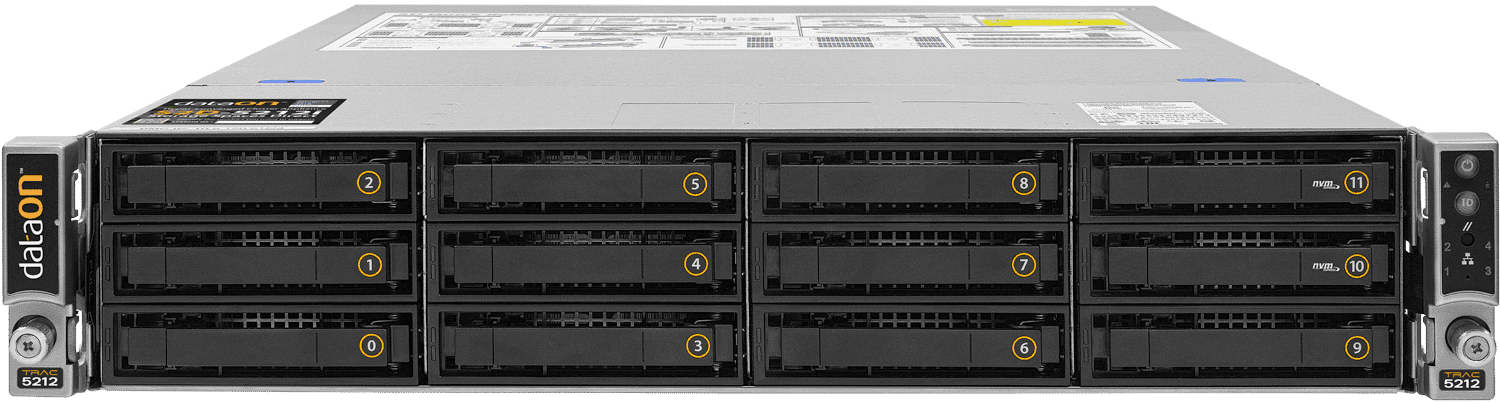

DataON K2N/K3N-212 Switchless Validated Node for Azure Stack HCI

DataON K2N/K3N-212 switchless validated nodes for Azure Stack HCI are designed for smaller, remote deployments such as small-to-medium sized businesses, remote office/branch offices and edge computing. Optimized for performance & expansion with all-flash NVMe storage and powered by 2nd Gen Intel® Xeon® Scalable processors, they combine Intel® technologies and Azure Stack HCI to they enable organizations to modernize their infrastructure, start or extend their hybrid cloud journey, and consolidate virtualized workloads.
Available in 2- and 3-node versions, DataON Kepler validated nodes feature switchless back-to-back networking for peak simplicity and affordability, plus innovative technologies that set Azure Stack HCI apart at the small scale. Nested resiliency protects you from multiple concurrent failures. Cloud quorum technologies can leverage Azure instead of an appliance virtual machine for a quorum. Kepler 3-node (K3N) solutions provide an additional layer of resiliency over Kepler 2-node (K2N) solutions, essential in environments or multiple ROBO and edge deployments that require 3-way mirror fault tolerance.
Solution TypeValidated Node
ProfileAll-NVMe Flash
Form Factor2U / 1-Node Rack
Scale2 to 16 Nodes
CPU2nd Gen Intel® Xeon® Scalable processors
Cores16-56 Cores
Memory256GB – 2TB
Raw Storage8TB – 140TB
Drive Bay Config2x NVMe U.2 and 10x SAS/SATA
PCIe Slot Config7x PCIe 3.0 x8
Onboard Networking2x 10GbE RJ45
Netowrking Fabric2x 25GbE SFP28 or 2x 40/50/100GbE QSFP28 dual-port RDMA adapters
GPU SupportNo
PMEM SupportNo
Secured-core ServerNO
Kernel Soft RebootNO
Vectorized AESNo
VM Memory EncryptionNo
Lifecycle PhaseCurrent

Graphic-Springboard-Title

DataON MUST for Windows Admin Center

DataON MUST (Management Utility Software Tool) combines with Microsoft Windows Admin Center to provide a high level of infrastructure visibility, monitoring, and management for Azure Stack HCI and Windows Server environments.
MUST enhances the Windows Admin Center experience with expanded functionality:
  • Historic data reporting
  • Enhanced disk mapping
  • Alert services
  • Call home service
  • Infrastructure inventory management
Get the Datasheet ⟶
Watch the MUST Demo

Graphic-Springboard-Title

Hybrid Cloud Use Cases for Azure Stack HCI

Image module
Run workloads from your branch office to the edge
Meet the evolving IT demands of branch offices, retail stores, and field locations at an affordable cost.
Image module
Support large-scale virtual desktop implementations
Use remote desktop services, highly available virtual machines (VMs), and integrated scalable storage to support your large-scale virtual implementations.
Image module
Optimize the performance of virtualizing SQL Server
Deploy and manage demanding SQL Server workloads running on hyper-converged infrastructure to get best of class performance.
Image module
Improve security with trusted enterprise virtualization
Use virtualization-based security and certified hardware to help secure your sensitive workloads. Help protect against threats with secure firmware, hardware, and host OS with Secured-core server built in.
Image module
Deploy a tightly integrated Kubernetes–enabled platform
Enable automated deployment and management of containerized apps by running Kubernetes clusters on your hyperconverged infrastructure.
Image module
Run workloads on a highly secure infrastructure
Secured-core servers provide added security for critical applications and data used on the hosts and VMs that run on them.

Graphic-Springboard-Title

Resources

Image module
DataON Kepler Switchless
Quick Reference Guide
Download Now
Image module
DataON Kepler-47 G2
Datasheet
Download Now
Image module
Azure Stack HCI
Datasheet
Download Now
Image module
Azure Stack HCI: An Overview
White Paper
Download Now
Image module
Five Hybrid Cloud Use Cases
for Azure Stack HCI
Download Now
Image module
Intel® Select Solutions for Azure
Stack HCI with 3rd Gen Intel Xeon
Download Now

Graphic-Springboard-Title

Let’s Get Started

We’re here to help you get started
on your hybrid cloud journey.
