AZS-6208G Integrated System for Azure Stack HCI Optimized for Workloads in ML/DL,
Video Transcoding, and Virtual Desktops
All-NVMe
Graphic-Springboard-Title

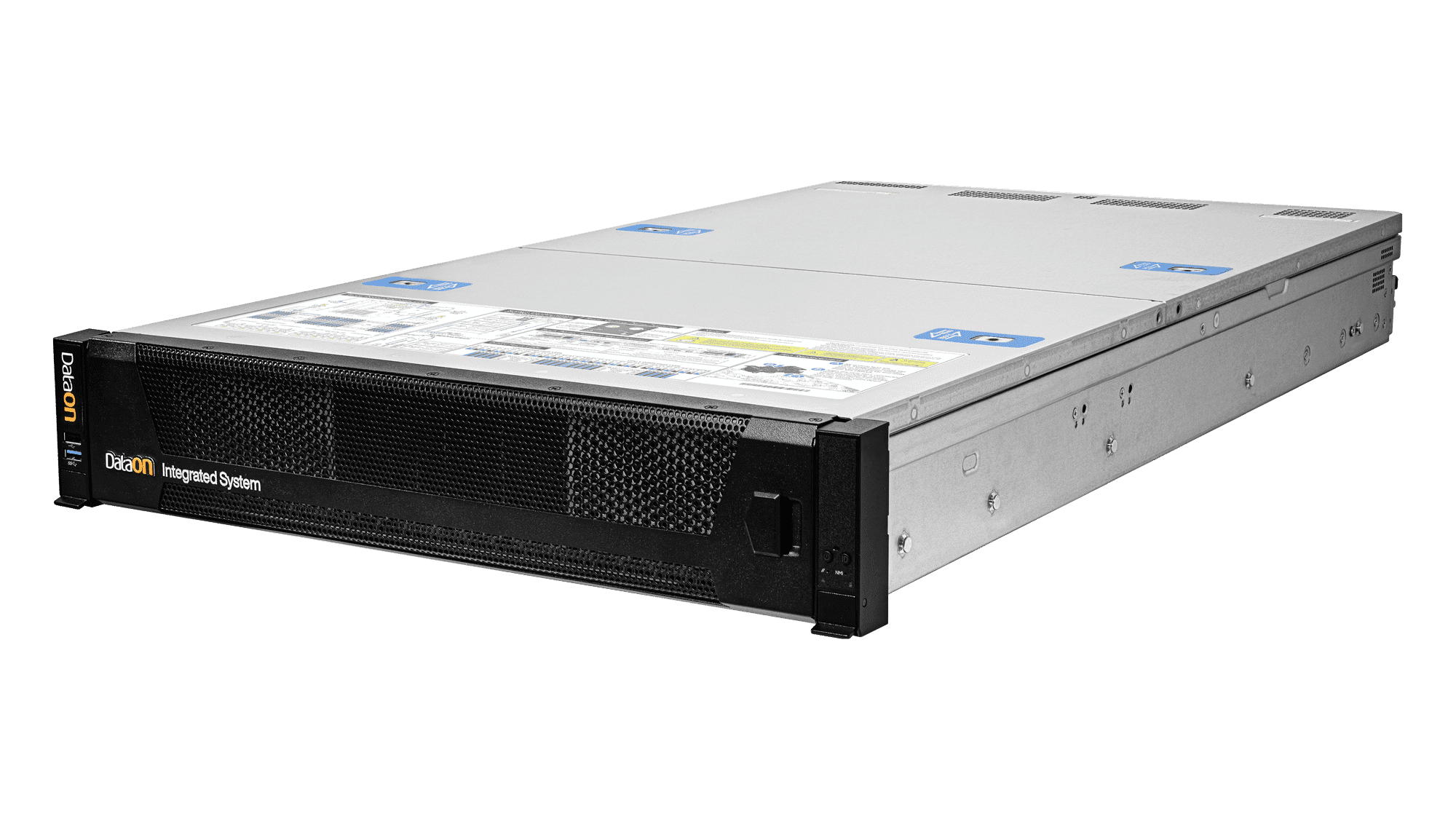

DataON AZS-6208G Integrated System for Azure Stack HCI

Get all fully integrated appliance-like experience with a DataON AZS-6208G Integrated System for Azure Stack HCI. Optimized for workloads in deep learning and machine learning training and inferencing, video transcoding, and virtual desktops. Integrated Systems deliver the fastest time-to-value through the convenience of pre-installed software, integrated drivers, and firmware updates. Simple to deploy and procure, it’s ideal for customers who require turnkey solutions with little deployment effort from IT staff. It also includes joint support agreements and ticket exchange with both DataON and Microsoft.
​The AZS-6208G features NVIDIA A16 graphics processing units (GPUs) to provide acceleration to workloads in clustered virtual machines (VMs).
DataON Integrated Systems are powered by 3rd Gen Intel® Xeon® Scalable processors, combining Intel® technology with Azure Stack HCI to provide a powerful platform for data center modernization. Together they enable organizations to modernize their infrastructure, start or extend their hybrid cloud journey, and consolidate virtualized workloads.
Image module
Solution TypeIntegrated System
ProfileGPU Optimized
Form Factor2U / 1-Node Rack
Scale2 to 16 Nodes
CPU3rd Generation Intel® Xeon® Scalable processors
Core8 - 80 Cores
Memory512GB – 8TB
Raw Storage4TB – 180TB
Drive Bay Config8x 2.5” NVMe U.2
PCIe Slot Config2x PCIe 4.0 x8 (electrical/mechanical); 2x PCIe 4.0 x16 (electrical/mechanical) double-width slots; 2x PCIe 4.0 x16 (electrical/mechanical) single-width slots
Onboard Networking2x 10GbE RJ45 OCP mezzanine or 2x 10GbE SFP+ mezzanine
Networking Fabric2x 25GbE SFP28 or 2x 40/50/100GbE QSFP28/56 2-port RDMA
GPU SupportUp to 2x NVIDIA A16 GPUs
PMEM SupportNo
Secured-core ServerYes
Kernel Soft RebootYes
Vectorized AESYes
VM Memory EncryptionNo
Lifecycle PhaseCurrent

Graphic-Springboard-Title

Easily Update DataON Integrated Systems with MUST Pro

DataON MUST Pro is an extension exclusive to DataON Integrated Systems for Azure Stack HCI. It integrates with Microsoft’s cluster aware update (CAU) functionality to simplify deployment and updates to Azure Stack HCI, with minimal disruption to your hybrid cloud infrastructure.
MUST Pro automatically compares your server nodes against the latest quarterly validated server component image baseline from Microsoft. It ensures that servers have the same OS version, drivers, firmware, BIOS, and BMC, and checks the drivers and firmware for network cards, host bus adapters, and SSD and HDD drives. With a single click, your entire cluster can be updated. CAU helps keep your system updated and secure against the latest server exploits
Watch the MUST Demo
Image module
StorageReview gives Microsoft and DataON its Editor’s Choice Award
Azure Stack HCI is recognized for simplicity, manageability, and exceptional performance.
DataON Integrated System for Azure Stack HCI podcast with StorageReview’s Brian Beeler
Image module
Run workloads from your branch office to the edge
Meet the evolving IT demands of branch offices, retail stores, and field locations at an affordable cost.
Image module
Support large-scale virtual desktop implementations
Use remote desktop services, highly available virtual machines (VMs), and integrated scalable storage to support your large-scale virtual implementations.
Image module
Optimize the performance of virtualizing SQL Server
Deploy and manage demanding SQL Server workloads running on hyper-converged infrastructure to get best of class performance.
Image module
Improve security with trusted enterprise virtualization
Use virtualization-based security and certified hardware to help secure your sensitive workloads. Help protect against threats with secure firmware, hardware, and host OS with Secured-core server built in.
Image module
Deploy a tightly integrated Kubernetes–enabled platform
Enable automated deployment and management of containerized apps by running Kubernetes clusters on your hyperconverged infrastructure.
Image module
Run workloads on a highly secure infrastructure
Secured-core servers provide added security for critical applications and data used on the hosts and VMs that run on them.
