Overview

[dfd_spacer screen_wide_spacer_size=”65″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
[dfd_info_box title=”High Capacity” subtitle=”Equipped with over 120TB of raw capacity in a single server for storage intensive applications or enterprise level storage. ” main_content=”” ic_dfd_icons=”dfd-socicon-check2″ main_style=”style-1″ main_layout=”layout-3″ title_font_options=”tag:div” subtitle_font_options=”tag:div” icon_color=”#e9a837″ icon_size=”25″][dfd_spacer screen_wide_spacer_size=”20″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″][dfd_info_box title=”High Density ” subtitle=”Includes twelve 3.5’” SSD/HDD drives in a single 2U storage server.” main_content=”” ic_dfd_icons=”dfd-socicon-check2″ main_style=”style-1″ main_layout=”layout-3″ title_font_options=”tag:div” subtitle_font_options=”tag:div” icon_color=”#e9a837″ icon_size=”25″][dfd_spacer screen_wide_spacer_size=”20″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″][dfd_info_box title=”Enterprise Hardware RAID Ready” subtitle=”Tested and validated with enterprise hardware RAID for maximum throughput and performance.” main_content=”” ic_dfd_icons=”dfd-socicon-check2″ main_style=”style-1″ main_layout=”layout-3″ title_font_options=”tag:div” subtitle_font_options=”tag:div” icon_size=”25″ icon_color=”#e9a837″][dfd_spacer screen_wide_spacer_size=”20″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″][dfd_info_box title=”SMB 3.0 over RDMA ” subtitle=”Provides low latency storage and networking, and increased CPU efficiency within a 10/40GbE network.” main_content=”” ic_dfd_icons=”dfd-socicon-check2″ main_style=”style-1″ main_layout=”layout-3″ title_font_options=”tag:div” subtitle_font_options=”tag:div” icon_size=”25″ icon_color=”#e9a837″][dfd_spacer screen_wide_spacer_size=”20″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″][dfd_info_box title=”Built for Microsoft enterprise backup ” subtitle=”Ideal for tier 1 and nearline data backups.” main_content=”” ic_dfd_icons=”dfd-socicon-check2″ main_style=”style-1″ main_layout=”layout-3″ title_font_options=”tag:div” subtitle_font_options=”tag:div” icon_size=”25″ icon_color=”#e9a837″][dfd_spacer screen_wide_spacer_size=”35″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]

DataON DCS-3212 Backup Appliances for Windows Server 2016

The DCS-3212 utilizes dual Intel® Xeon® E5-2600v4 processors with up to 512GB of memory—capable of delivering up to 120TB of storage in single 2U system. It is also equipped with twelve hot-swappable screw-less 3.5” drives in an ultra-dense 2U chassis. Support for both enterprise hardware RAID and SMB 3.0 over RDMA on a 10/40Gbe network provides maximum throughput and performance.

The DCS-3212 fully supports Storage Replica, a new disaster recovery feature in Windows Server 2016. It supports both synchronous and asynchronous data replication across any distance, and supports HDDs. It also works at a block level so it works with any type of file system, including ReFS.

The DCS-3212 also supports Veeam® Backup & Replication™, which provides fast, flexible, and reliable recovery of virtualized applications and data in a Hyper-V environment. Veeam Backup delivers fast, reliable backup and restoration of files, entire VMs and application items, without the use of agents.

[dfd_spacer screen_wide_spacer_size=”35″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
  • Object storage and distributed file storage ready
  • Active backup and archive enabled configurations
  • Up to 624TB in a single storage enclosure
  • Screw less HDD tray for efficient deployment

Tech Specs

[dfd_spacer screen_wide_spacer_size=”45″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
ModelDCS-3212
Form Factor2U Rackmount Single Server node, dual socket & cluster ready
Storage Drive(24) 2.5" Hot-plug drives
Storage I/O12Gb/s SAS 3.0
Power & Cooling(1+1) 750W Hot-swap & Redundant power supplies
(4) Dual-rotor fans
(7+1) Redundant
Processor(2）Intel® Xeon® E5-2600 V4 family
Memory24x DIMM slots; 2133/2400MHz DDR4, up to 512GB per node
Boot Drives2 x 7mm 128GB SATA III SSD mirrored, hot-plug
Expansion Slot(1) PCIe 3.0 x16
(3) PCIe 3.0 x8
(1) PCIe 3.0 x8 for SAS HBA
Storage Controllers1 x Broadcom | LSI 9300-8i 8-port internal 12GB SAS HBA
Network(2) Intel® 82599 GbE RJ-45
Management Port(1) GbE RJ-45 IPMI Management port
System ManagementIPMI v2.0 compliant, SNMP support
TPMTPM 2.0

Gallery

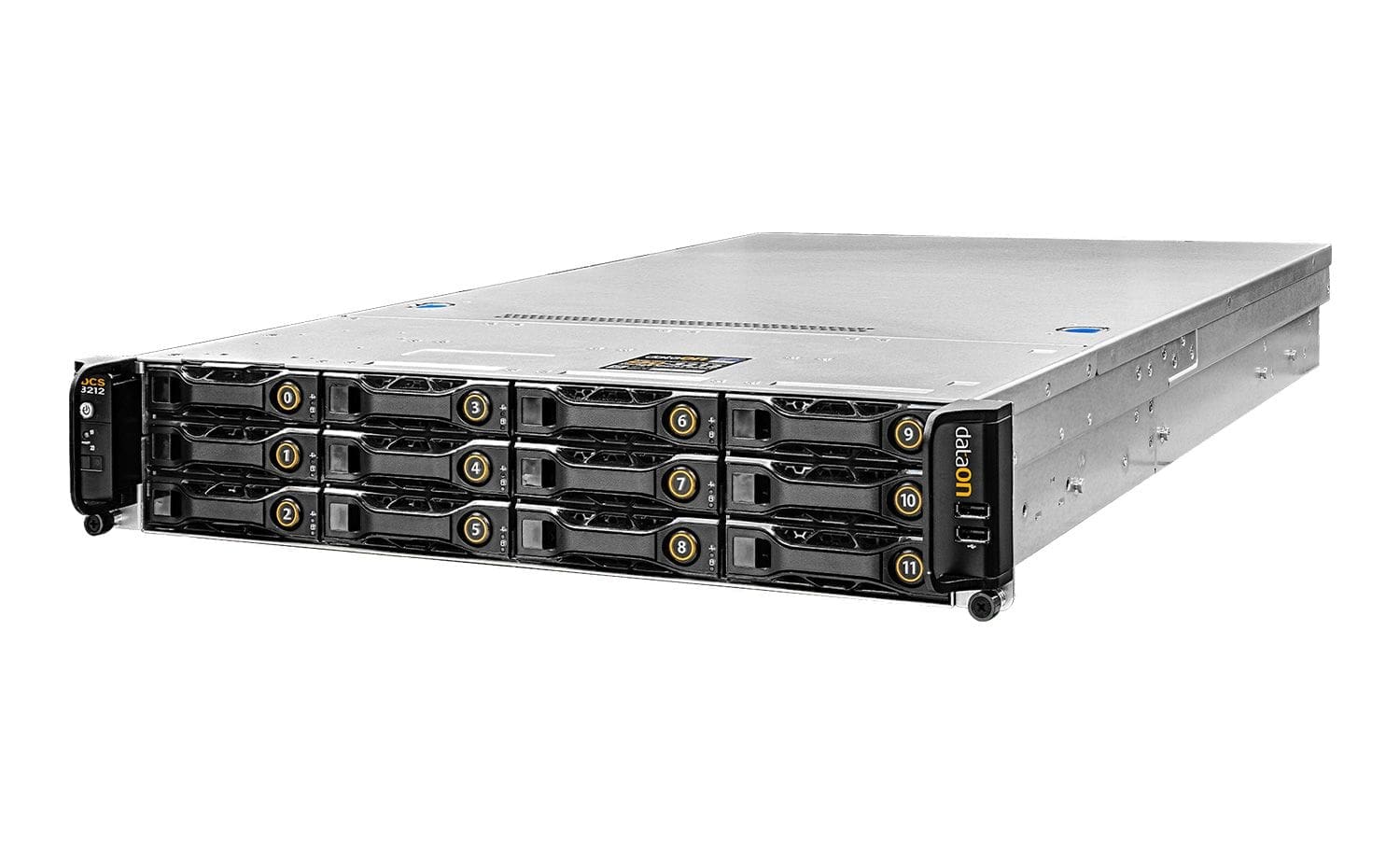

CiB-9112 Front View DCS-3212 Front View DCS-3212 Rear View DCS-3212 Rear Side View
[dfd_spacer screen_wide_spacer_size=”35″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″ screen_normal_spacer_size=”25″ screen_tablet_spacer_size=”12″ screen_mobile_spacer_size=”15″]

Documentation

[dfd_spacer screen_wide_spacer_size=”65″ screen_normal_resolution=”1024″ screen_tablet_resolution=”800″ screen_mobile_resolution=”480″]
[dfd_info_box title=”” subtitle=”DCS-3212 Datasheet” main_content=”” read_more=”box” icon_type=”custom” main_style=”style-1″ main_layout=”layout-1″ link=”url:http%3A%2F%2Fdoc.dataonstorage.com%2Fproduct%2FDCS%2F3212%2FDataON_DCS-3212_2U_12-bay_Data_Center_Storage_Backup_Appliances_Datasheet.pdf||target:%20_blank|” icon_image_id=”1919″ subtitle_font_options=”tag:div”]
