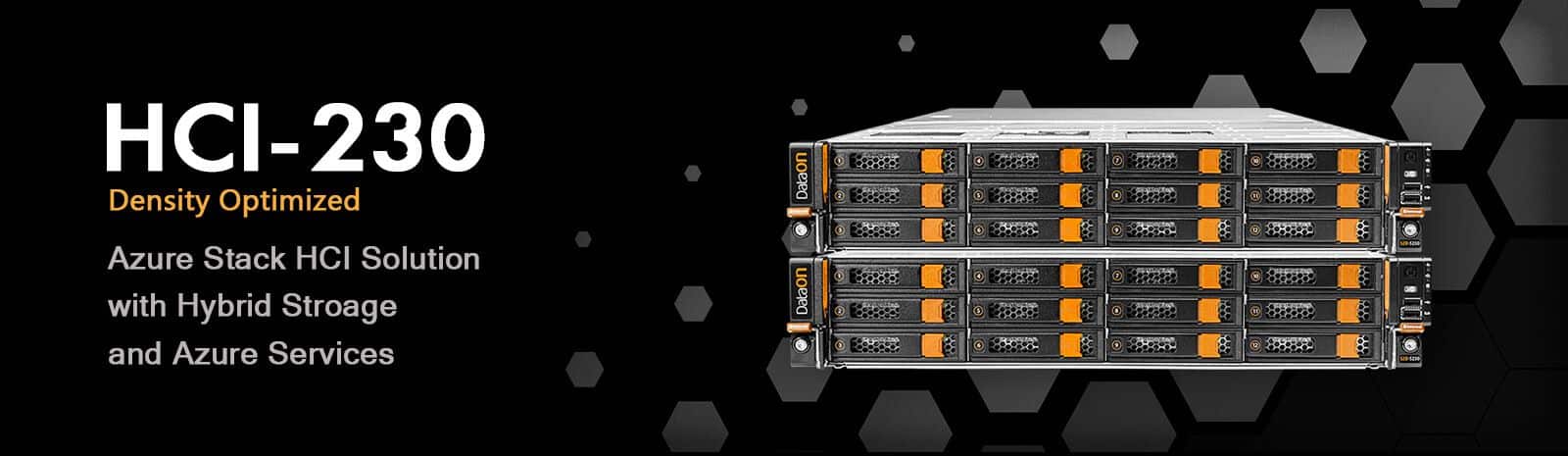

DataON HCI-230 solutions for Microsoft Azure Stack HCI provide high density storage with NVMe flash cache for optimized performance. These solutions for medium to enterprise data centers provide superior and reliable hyper-converged and scale-out file server solutions for file services, media streaming, video surveillance, IoT data gathering, backup and archive, and big data analytics. Built-in integration with Microsoft Azure makes it easy to use Azure for infrastructure management services.

  • Validated solution for Azure Stack HCI for fast and easy deployments
  • Optimized for storage density
  • Consolidate virtualized workloads with an Azure-inspired HCI solution
  • Extend to Azure quickly and easily with simplified access to cloud management and security services
  • Two to sixteen node hyper-converged infrastructure solutions with Ethernet fabric interconnect
  • Up to 64TB of Intel® NVMe flash cache and 336TB of HDD traditional storage per node for optimized performance
  • Leverages 25/100GbE SMB3 RDMA connectivity
  • Includes Windows Admin Center with DataON MUST visibility, monitoring, and management extension for a better HCI and hybrid cloud experience
  • Features 2nd Generation Intel® Xeon® Scalable processors
  • Supports Intel® Optane™ DC persistent memory and SSD memory
Image module

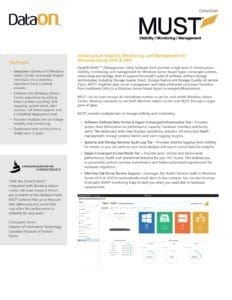

Managed by MUST



DataON solutions for Azure Stack HCI include our exclusive MUST (Management Utility Software Tool) visibility, monitoring, and management tool for Window Admin Center.

Windows Admin Center is a locally deployed, browser-based app for managing Windows servers, clusters, and hyper-converged infrastructures. It helps to simplify server management, streamline hyper-converged management, and connect your on-premises servers with relevant Azure cloud services.

DataON MUST adds to the Windows Admin Center experience with added functionality, including a node & cluster utilization dashboard, enhanced disk mapping, historic data reporting alert services, and call home services.

MUST also makes it easy for IT staff to start using Azure for infrastructure management services. Soon you’ll be able to take advantage of Azure hybrid operations like Azure monitoring through DataON MUST monitoring agents, as well as Azure services provisioning from our cloud services.

ModelHCI-230
ProfileHybrid
High-density
Form Factor2U / 1-node rack 6x 2.5” and 24x 3.5”
Drive Bay Config 16x NVMe U.2 and 24x SAS/SATA
Drive Bay Config 2--
Scalability2 to 16 nodes per cluster
Processor2nd Generation Intel® Xeon® Scalable
CPU CoresDual socket, 16-48 cores per node
TPM2.0Included
Memory128GB to 1TB DDR4 2933MHz per node
DIMM16 slots
Boot DriveDual SATA
Cache TierIntel® NVMe SSDs
Capacity TierSAS HDDs
PCIe Slot Config 12x PCIe 3.0 x16
PCIe Slot Config 2--
Onboard Network Ports2x 1GbE RJ45
Networking2x 25GbE SFP28
or 2x 40/50/100GbE QSFP28
dual-port RDMA adapters
Max.TDP165W
Power SupplyDual 1600W@200-240V
Dimensions3.44" H x 17.63" W x 32.50" D
