DataON DNS-2760 Storage Enclosures for Windows Server 2016

DataON DNS-2760 storage enclosures make server expansion affordable and efficient. With versatile mix-and-match drive options, it provides both increased capacity and performance. The DNS-2760 is designed to provide cost-effective, low cost-per-GB external storage for massive data capacity applications.

The DNS-2760 can be used either as a standalone direct attach JBOD, or for storage expansion in software-defined storage deployments like Microsoft Windows Server 2012 Storage Spaces and Microsoft Windows Server 2016 Storage Spaces Direct (converged deployments).

The DNS-2760 provides up to 720TB in just 4U of rack space. It can be connected directly to DataON TracSystem ready nodes using Broadcom® 9000 series SAS host bus adapters (HBA), or connect to DataON Data Protection System solutions with Broadcom MegaRAID 9000 series hardware RAID controllers.

  • Affordable, High-Density Storage – Offers affordable, scalable storage that allows you to maximize your budget and your finite rack space.
  • Start Small, Grow Big – With its versatile and modular design, you can start with the capacity you need now, and easily expand as your needs grow.
  • Enterprise-Class Resiliency – Helps protect your organization from business disruptions with integrated, leading-edge technologies, including dual-port 12Gb/s SAS connectivity, dual I/O modules, and fully-redundant power supplies.

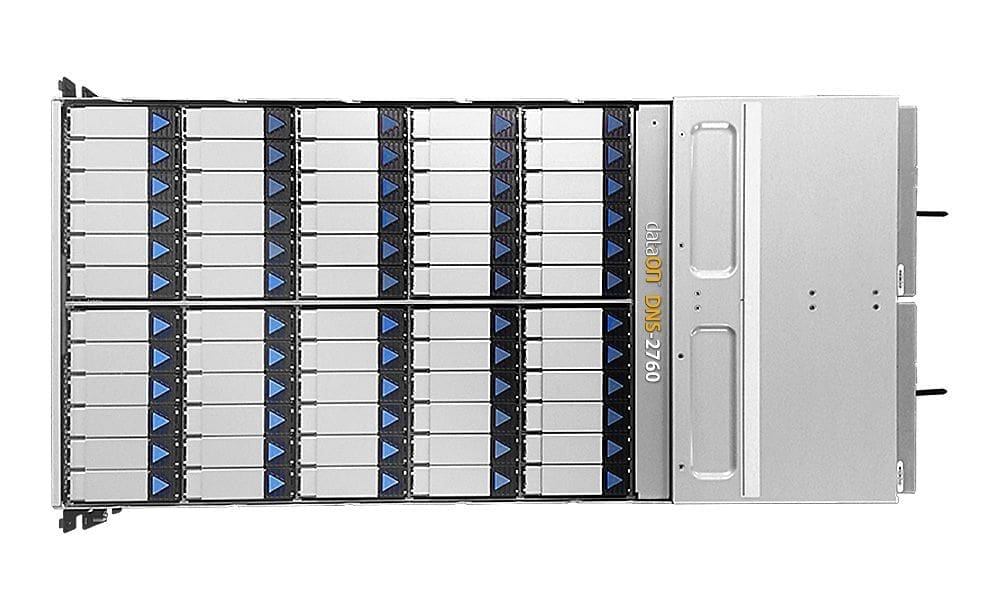

  • Tailored Performance – Holds up to sixty 2.5”/3.5” drives. Mix-and-match nearline storage, 10K RPM HDDs, and SSDs within the same enclosure to meet your capacity and performance needs.
ModelDNS-2760

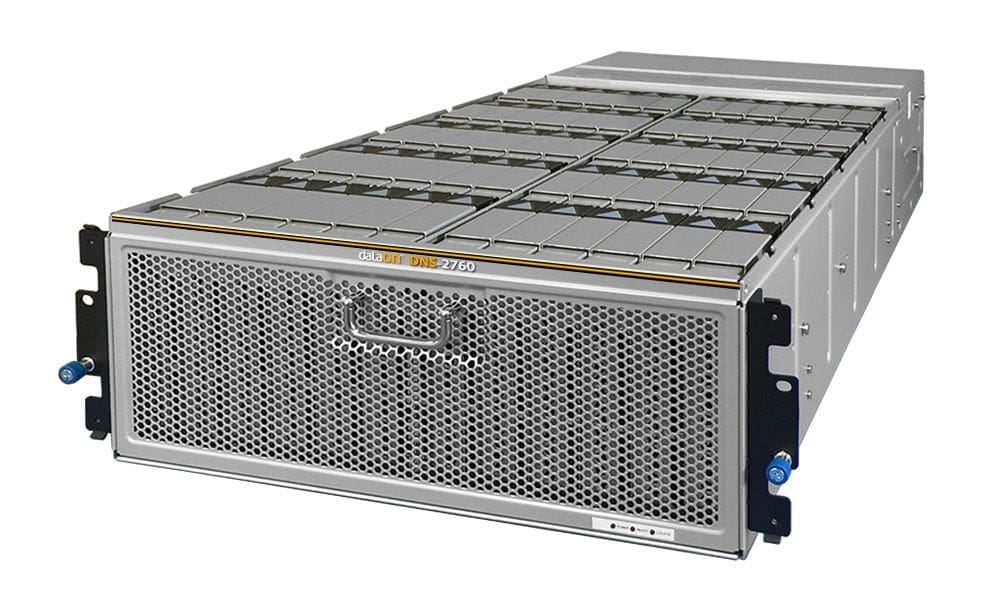

Form Factor4U 60-Bay rack with passive backplane
Drive Support(60) 3.5”/2.5” 12Gb/s SAS 3.0
Drive Form Factor3.5" Disk Device (2.5" optional)
I/O ControllerDual 12Gb/s SAS 3.0 Controller Module

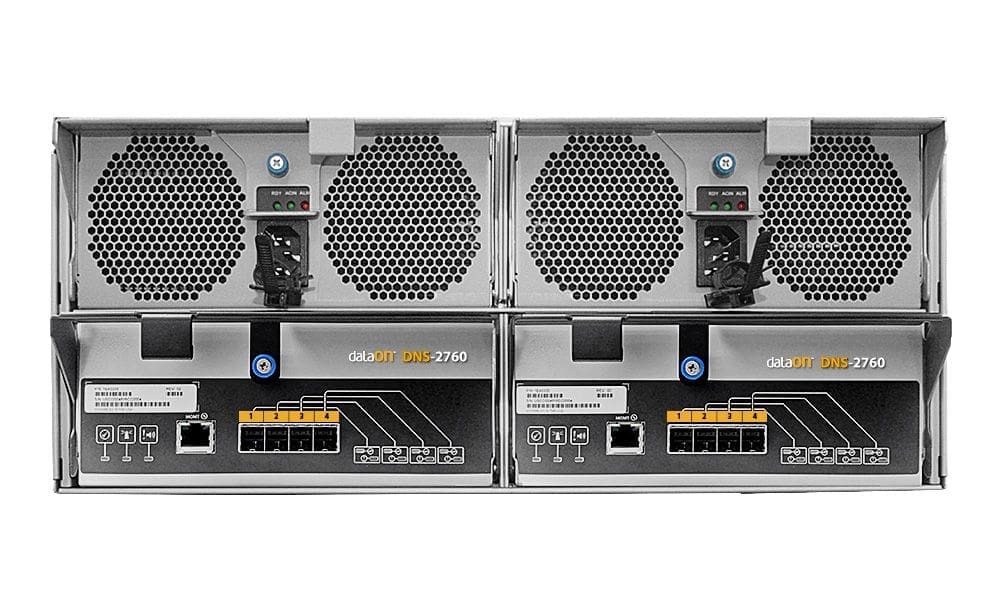

Host InterfaceEight 12Gb/s SAS 3.0 SFF-8644 connections per I/O
Controller Support12Gb/s SAS HBA and/or host-based RAID controller cards
Disk DriveHot-swappable 60 bays
ManagementSupport SCSI Enclosure Services (SES-3)
Power SupplyDual redundant power with (2) 1650W / 200-240V AC
Enclosure Dimensions6.88” H x 16.69” W x 34.70” D
Weight200 lbs. (fully populated)
Temperature range5° to 35°C
Humidity8% to 80% (non-condensing)
Shock3.5g 6ms Pulse vertical shock
VibrationRandom 0.25 Grms, 5-10Hz, 0.05 g sine wave sweep, 10-300Hz
Acoustics<7.5dB LwA @ 23ºC
