Overview

The DataON TracSystem S2D family is built to optimize the full stack of Storage Spaces Direct, a feature in Windows Server 2016. It delivers industry-leading performance for the most affordable price, providing software-defined, shared-nothing storage.

Windows Server 2016 can be used for hyper-converged deployments, where compute and storage are both on the same cluster, simplifying configuration and reducing hardware costs.

Storage Spaces Direct can scale to up to 16 servers and over 400 drives, for up to 1 petabyte of storage per cluster. It also unlocks a new class of NVMe solid-state storage devices, for faster performance than SAS SSDs.

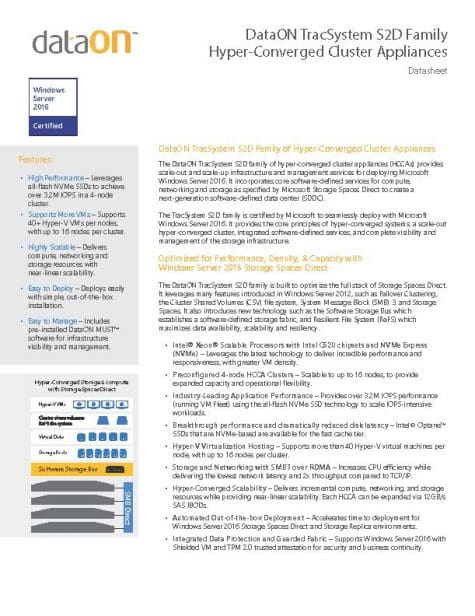

Image module
High Performance
Leverages all-flash NVMe SSDs to achieve over 3.2M IOPS in a 4-node cluster.
Supports More VMs
Supports 40+ Hyper-V VMs per nodes, with up to 16 nodes per cluster.
Highly Scalable
Delivers compute, networking and storage resources with near-linear scalability.
Easy to Deploy
Deploys easily with simple, out-of-the-box installation.
Easy to Manage
Includes pre-installed DataON MUST™ software for infrastructure visibility and management.

Technical Specification

S2D-5208i* S2D-5212i S2D-5224i S2D-5240i
Profile All-Flash / Hybrid
Balanced IOPS & Capacity Optimized
Hybrid
Performance & Cost Optimized
All-NVMe / All-Flash
IOPS & Performance Optimized
All-Flash
IOPS & Density Optimized
Form-Factor 2U / 1-Node Rack with 8x 2.5” Bays 2U / 1-Node Rack with 12x 3.5” Bays 2U / 1-Node Rack with 24x 2.5” Bays 2U / 4-Node Rack with 24x 2.5” Bays
Drive Bay Config 1 4x NVMe U.2 + 24/60-Bay Ext. JBOD 2x NVMe U.2 + 10x SAS/SATA 24x NVMe U.2 8x NVMe U.2 + 16x SAS/SATA
Drive Bay Config 2 24/60-Bay External JBOD 4x NVMe U.2 + 20x SAS/SATA
Scalability 4 to 16 Nodes per Cluster
Processor Intel® Xeon® Scalable Processor with Intel C620 Chipsets
CPU Cores Dual Socket, 16 to 44 Cores Per Node
Memory / Slots 128GB to 1.5TB DDR4 DIMMs
24 slots
128GB to 1.5TB DDR4 DIMMs
24 slots
128GB to 1.5TB per DDR4 DIMMs
24 slots
128GB to 1.0TB per DDR4 DIMMs
16 slots
Cache Tier Intel Optane™ or NVMe SSDs
Capacity Tier SAS HDDs (in external JBOD) SATA SSDs & SAS HDDs NVMe or SATA SSDs SATA SSDs
PCIe 3.0 Slots 6x PCIe 3.0 x8 1x PCIe 3.0 x16
Onboard NIC 2x 10GbE RJ45
Networking 2x 10GbE SFP+ or 2x 40/100GbE RDMA QSFP
Security TPM 2.0
Max. TDP 165W 140W 140W 140W
Power Supplies Dual 1300W Dual 2130W

*Connects to JBOD for the capacity tier.
