Easy to Deploy
Simple out-of-the-box installation
Highly Available
Features dual-node clusters, dual controllers, dual path, heartbeat and redundant power
Highly Flexible
Supports all-flash storage (SSDs), tiered storage (SSDs + HDDs), and capacity storage (HDDs)
Easy to Scale
Expand storage capacity through external storage enclosures (JBODs)
Easy to Manage
DataON MUST software is pre-installed for infrastructure visibility and management

DataON DNS-2640 Storage Enclosures for Windows Server 2016

As part of a Windows-based storage solution, the DNS-2640 helps to reduce complexity and cost from deploying a traditional SAN backup. Using a virtualized environment provides greater flexibility and scalability as your backup storage needs grow.

Tailored to withstand storage capacity demands in a hyper-scale data center, the DNS-2640 provides exceptionally high storage density while delivering outstanding low dollar-per-GB costs for cold, warm and even hot storage workloads. It also leverages high-efficiency power to maximize performance-per-watt savings to reduce TCO.

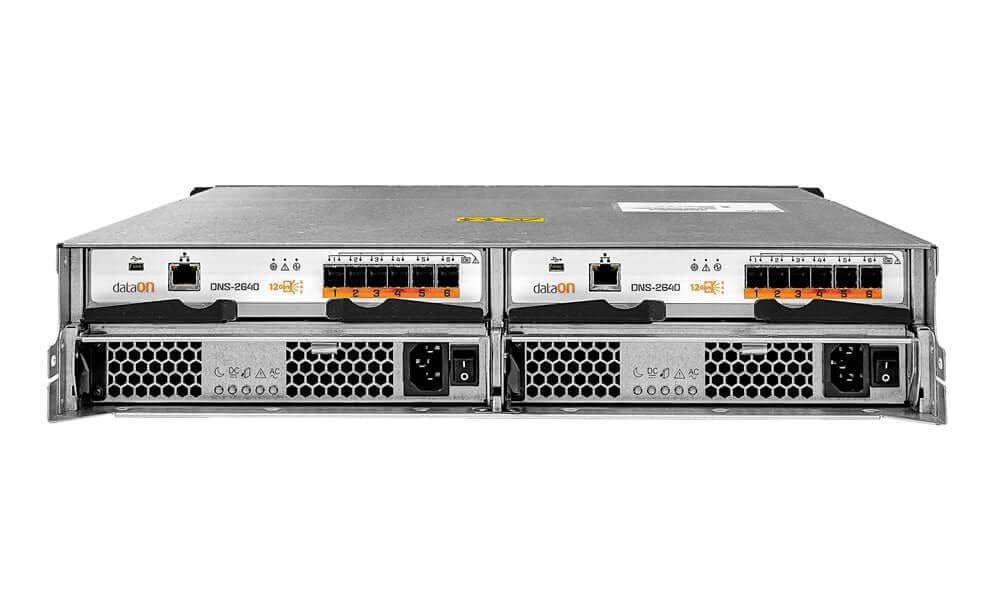

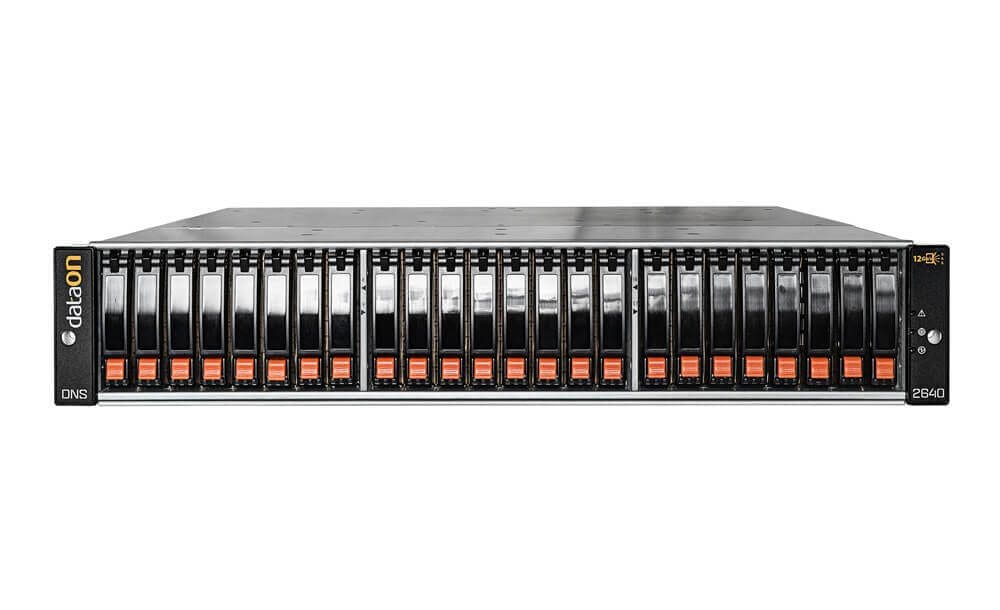

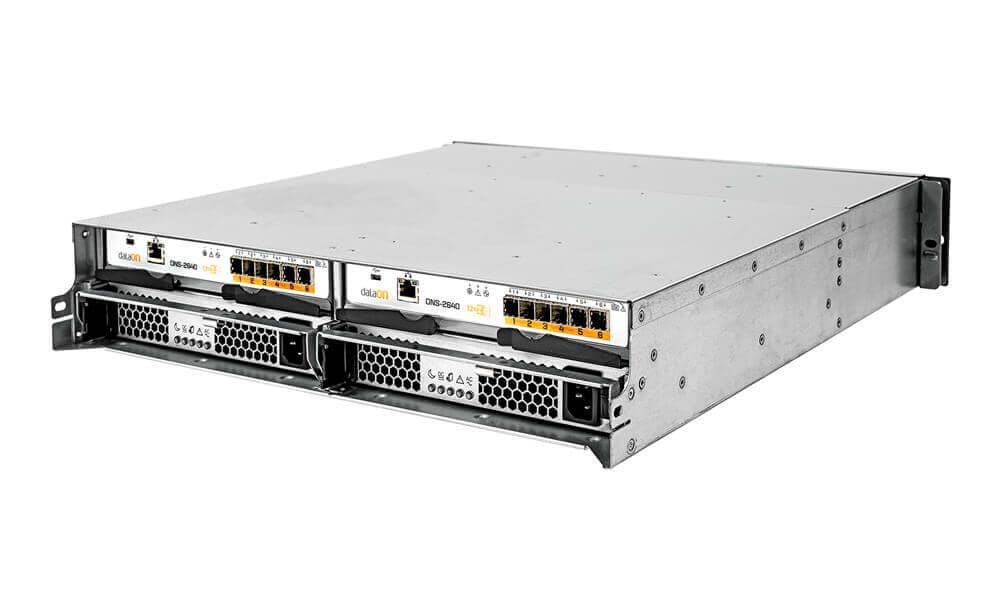

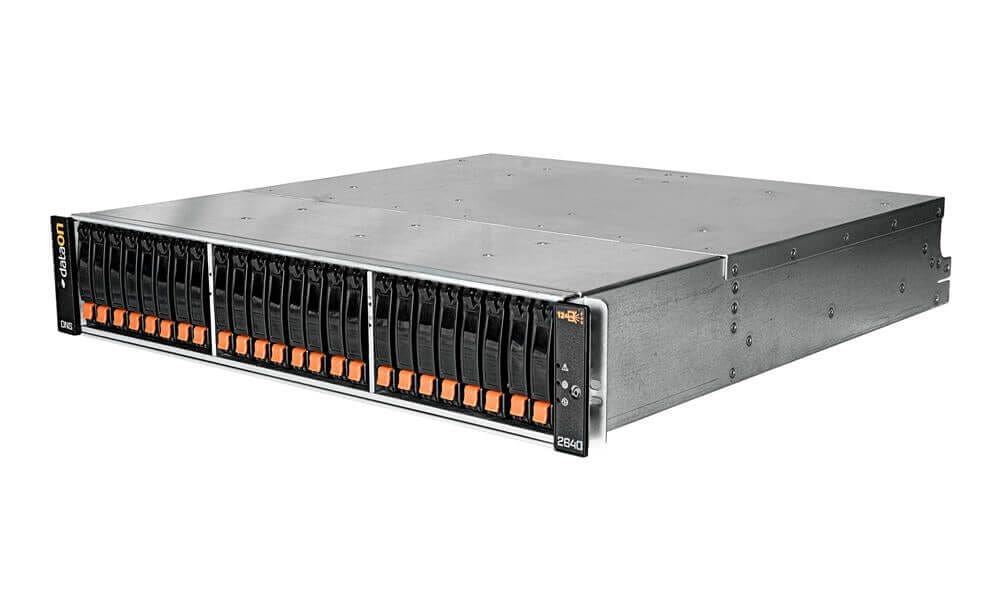

The DNS-2640 supports 2.5” 12Gbs/s or 6Gb/s SAS HDDs or SSDs in a 24-bay, 2U chassis. It is also equipped with redundant hot swap drive bays and power and cooling modules. It has single and dual I/O controllers for redundant and maximum availability, supporting up to 4800 MB/sec bandwidth per I/O controller.

The DNS-2640 is designed and optimized for Microsoft storage tiering for performance and capacity. It is certified by Microsoft to seamlessly deploy with Microsoft Server 2016.

  • Windows-based storage solution – Reduces complexity and cost from deploying a traditional SAN backup.
  • Supports a “start small, grow big” strategy –Connects to HBAs for scalable storage
  • Cost-effective alternative – Managed by a RAID controller or a HBA in the primary server, it delivers outstanding low dollar-per-GB costs for cold, warm and even hot storage workloads.
  • Energy efficient – Leverages high-efficiency power to maximize performance-per-watt savings to reduce TCO.
ModelDNS-2640
Form Factor2U 24-bay 2.5"
Drive Support12Gb/s & 6Gb/s SAS 3.0 HDD and SSD
Drive Form Factor2.5” Disk Device
I/O ControllerDual Redundant 12Gb/s SAS 3.0 Controller Module
Host InterfaceSix 12Gb/s SAS 3.0 SFF-8644 connections per I/O
SAS ExpanderPMC Sierra PM8055 SXP 48-port 12Gb/s SAS expander
Controller Support12Gb/s SAS RAID & SAS HBA
Server Host SupportSupports up to Six Server/Host with six host interface
Disk Drive24 x 12Gb/s or 6Gb/s dual-ported SAS SSD & HDD
Enclosure CoolingDual Cooling Fan Module built-in Power Module
Power Supply725W Delta 1+ 1 Redundant Power Supply
Drive Zoning1 x 24, 2 x 12 and 3 x 8 Split-bus Zoning via Firmware
LED Indicators*Identify Enclosure     *Power On & Activity     *Drive Fault
*Identify Drive     *Drive Rebuild
Enclosure Dimensions3.5” H x 17.6” W x 19.5” D
WeightEnclosure only: 48lbs with 24 drives: 72lbs
Failure NotificationSCSI Enclosure Services (SES-3) over in-band & LEDs
Operational EnvironmentTemperature: 5o to 35o C
Temperature gradient: 20o C per hour
Relative Humidity: 10% to 80% (non-condensing)
Humidity gradient: 10% per hour
Altitude: -200 to 10,000 ft.
Shock: 5G at 11ms, sine wave pulse
Vibration: 0.15G at 5Hz to 500Hz
Acoustics: 6.5 Bels at normal operation tested to ISO7779
Safety StandarsCE Mark, EN55022/EN61000 Class A, FCC Class A, VCCI Class A
UL 60950 CSA 22.2-950, IEC 60950, EN60950
DNS-2640 User Manual
DNS-2640 Datasheet
Image module

MX-2140-208

Image module

MX-2140-308

Image module

MX-2240-208

Image module

MX-2340-308

Image module

MX-2640-316

Image module

MX-3340-308

Image module

MX-3340-316

Image module

MX-3640-608

Image module

MX-4340-308

Image module

MX-4440-408

Image module

MX-6440-408

SSD / HDD List

ManufactureP/NModelInterfaceCapacityRPM/TypeSize
HGST0B31068HUSMM1616ASS20012Gb/s SAS1.6 TBMLC2.5"
HGST0B31067HUSMM1680ASS20012Gb/s SAS800 GbMLC2.5"
HGST0B31066HUSMM1640ASS20012Gb/s SAS400 GBMLC2.5"
HGST0B31065HUSMM1620ASS20012Gb/s SAS200 GBMLC2.5"
HGST0B28983HUC156060CS420x12Gb/s SAS600 GB15K2.5"
HGST0B28984HUC156045CS420x12Gb/s SAS450 GB15K2.5"
HGST0B28985HUC156030CS420x12Gb/s SAS300 GB15K2.5"
HGST0B29921HUC101818CS420x12Gb/s SAS1.8 TB10K2.5"
HGST0B27977HUC101812CS420x12Gb/s SAS1.2 TB10K2.5"
HGST0B27975HUC101890CS420x12Gb/s SAS900 GB10K2.5"
